UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km
This UAV FPV Drone video transmitter is designed for aerial video transmission by unmanned aircraft. It transmits video signals to the receiver for display, enabling real-time monitoring.
Integrated Video & Telemetry & RC
- One-way video transmission from drone camera to ground station for real-time video viewing
- One-way control command transmission from ground station to drone
- Two-way telemetry transmission between drone and ground station for sharing GPS, battery power, altitude, and other data
Low Latency Performance
Screen-to-screen latency as low as 200ms ensures real-time video data transmission and meets end-to-end requirements.
Automatic Frequency Hopping
It continuously monitors the interference conditions on all available transmission channels. If the current working channel is interfered with, it will automatically select and switch to the channel with the least interference, thereby ensuring the reliability and continuity of communication.
Stable Signal communication
Signal stability is directly proportional to signal strength. The Reference Signal Received Power (RSRP) value is used to measure the power of the downlink signal to determine its reliability.
AES encryption
Data transmission with AES128 encryption technology, making the data transmission more secure.
Support multiple networks
The HCL601 UAV FPV Drone video transmitter supports Point-to-Point, Point-to-Multipoint, Relay, and Mesh networking mode.
Technical Specifications
| Product Name |
UAV FPV Drone Video Transmitter 1.4G With Long Range Transmission 10km |
| Modulation |
TDD OFDM |
| Frequency |
566~678MHz, 1420~1530MHz |
| FHSS |
Support |
| Bandwidths |
3MHz, 5MHz, 10MHz, 20MHz, 40MHz |
| Encryption |
AES128 |
| Data Rate |
Maximum 100Mbps |
| RF Transmission Power |
300mW*2 |
| Constellation |
QPSK, 16QAM, 64QAM self adaption |
| Sensitivity |
-102dBm(1Mbps@20MHz) |
| Latency |
200ms |
| Transmission Range |
10km (UAV to Ground) |
| Power Input |
12~18V (for both air unit and Ground unit) |
| Power Consumption |
<7W |
| Dimensions |
83.7*61.4*20.2mm (the ground unit is the same as the air unit) |
| Weight |
106g (the ground unit is the same as the air unit) |
| Air Unit Connectivity |

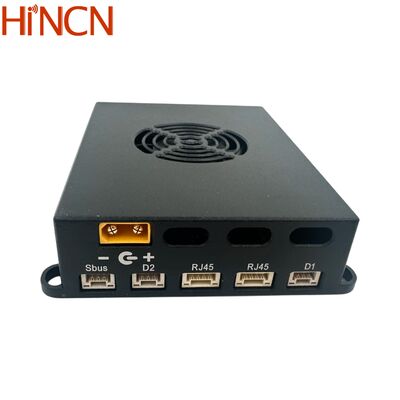

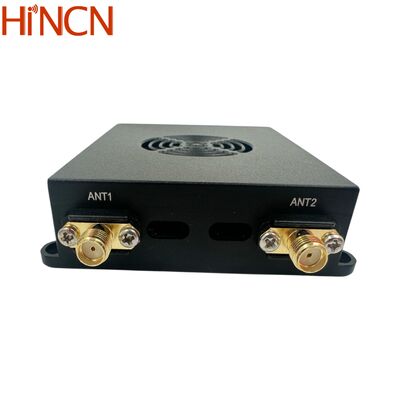

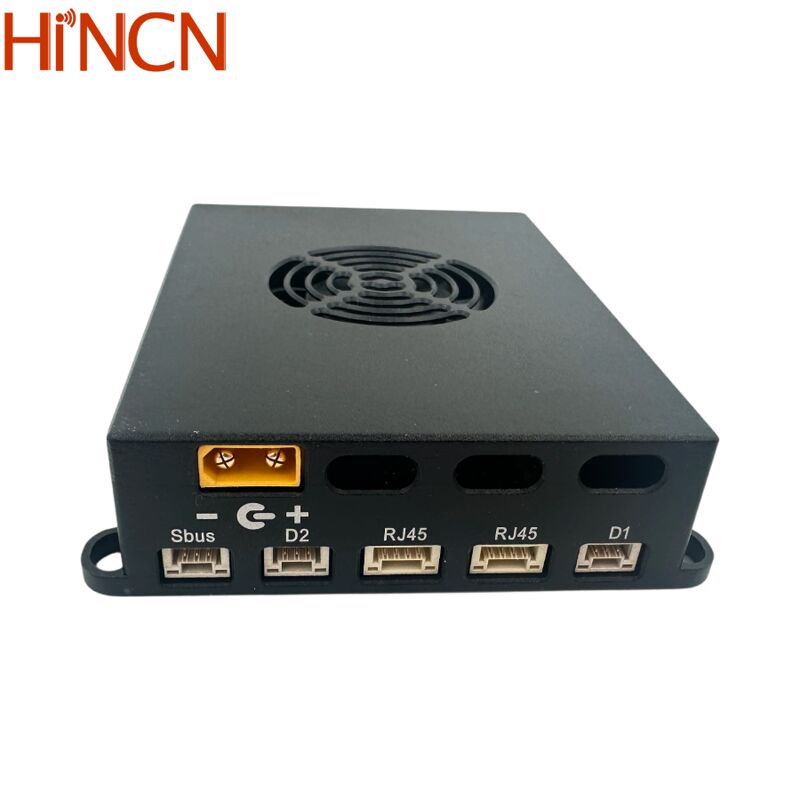

Ethernet*2, UART*2, SBUS, Power in, SMA*2 |
| Ground Unit Connectivity |
Ethernet*2, UART*2, SBUS, Power in, SMA*2 |
Product Design
Frequently Asked Questions
Q1. It seems to support IP camera, but I want HDMI or SDI video input?
The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission.
At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
