Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput

Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput
Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput

Large Image :  Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL536
Payment & Shipping Terms:
Minimum Order Quantity: 1 set (2 pcs)
Price: US$519~US$2,499
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,779sets/month
Contact Now Chat Now

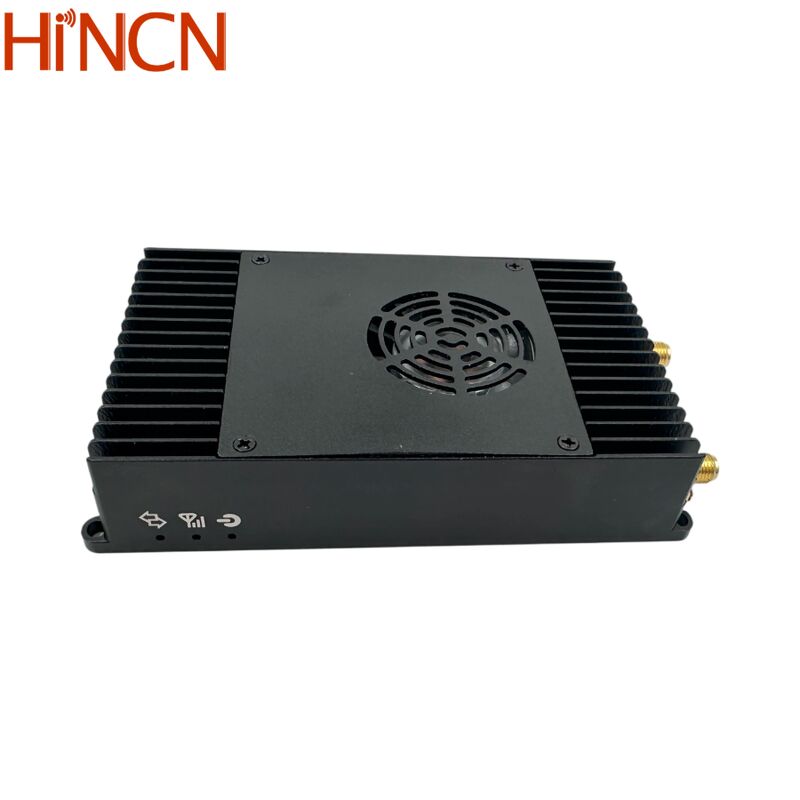

Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput

Description
Modulation: TDD OFDM Frequency: 806~826MHz,1428~1468MHz,1420~1530MHz
Bandwidths: 1.4/3/5/10/20MHz Throughput: Maximum 30Mbps@20MHz
RF Transmissioin Power: 300mW,2W And 5W Transmission Range: 10km,30km,55km,80km, 100km, 150km Range
Highlight:

150km Transmission Range Drone Video Transmitter

,

30Mbps Throughput FPV Video Transmitter

,

Lightweight UAV Video Transmitter

HCL536 Drone Wireless Video Transmitter
Compact, lightweight wireless video transmitter designed for long-distance video transmission ranging from 10KM to 150KM. Ideal for FPV and UAV flight applications.
Key Features
  • TDD OFDM technology-based wireless video data link
  • Maximum throughput of 30Mbps @20MHz bandwidth
  • Point-to-point and point-to-multipoint networking capabilities
  • Web UI or Serial UART management interfaces
  • Dual Ethernet ports with 3-channel serial data transmission
  • Uplink and downlink data stream control
Technical Specifications
Model Number HCL536
Modulation TDD OFDM
Frequency Bands 806~826MHz, 1428~1468MHz, 1420~1530MHz
FHSS Supported
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 300mW, 2W, 5W
Constellation QPSK, 16QAM, 64QAM self-adaption
Sensitivity -108dBm(1Mbps)
Ethernet Ports 2 * Ethernet ports
Serial Ports 3 channels, 3*RS232, 3*TTL or 2*RS232/TTL + 1*Sbus
Transmission Range 10km~150km (UAV to Ground)
Management Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 300km/h
Power Input 12~18V(2W), 24~28V(5W)
Power Consumption <22W(RF Power 5W)
Dimensions 103.4*61.4*22mm
Weight 142g

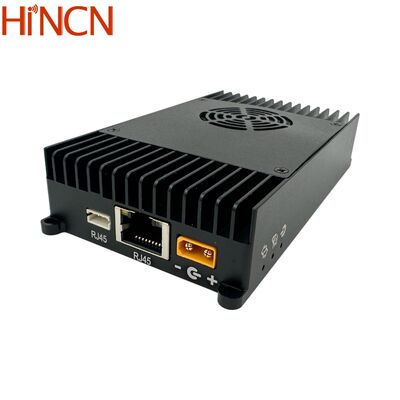

Input/Output Connections
Port Description
Ethernet 1 4Pin ZH1.5mm connector, bridged with Ethernet2
Ethernet 2 RJ45 connector, bridged with Ethernet1
Uart * 3 3Pin GH1.25mm lockable connector*3, 3 channel uart, RS232/TTL/Sbus optional
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Rx Antenna port, SMA female
Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput 0
Frequently Asked Questions
Q1. This Ethernet aircraft transmitter receiver supports IP cameras. What if I want HDMI or SDI video input?
The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission. At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
Lightweight Drone Video Transmitter with 150km Transmission Range and 30Mbps Throughput 1
Q2. For the 800MHz and 1.4G bands, which one would be better?
If your local area has DVB-T or DVB-T2 digital television signal in the 170-860Mhz range, the 1.4G band would be better. Additionally, since GPS antennas on drones point upward and transmitter antennas point downward, the 1.4G frequency has negligible effect on GPS signals.
