Drone Video Transmitter IP Video Data Transceiver with 30km Range AES128-bit Encryption and 300mW Dual-Power Amplifier

Large Image : Drone Video Transmitter IP Video Data Transceiver with 30km Range AES128-bit Encryption and 300mW Dual-Power Amplifier

Product Details:

Place of Origin:	China
Brand Name:	Hincn
Model Number:	HCL600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	US$999~US$1,268
Packaging Details:	Canned and packaged in cardboard boxes
Delivery Time:	7~14 working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1,689pcs/month

Contact Now Chat Now

Drone Video Transmitter IP Video Data Transceiver with 30km Range AES128-bit Encryption and 300mW Dual-Power Amplifier

Description

Throughput:	Maximum 100Mbps	Encryption:	AES128-bit
Control Method:	Web UI Or Control UART	Frequency:	566~678MHz And 1420~1530MHz
Flexible Channel Bandwidths:	3MHz, 5MHz, 10MHz, 20MHz, 40MHz	ODM/ODM:	Support
Highlight:	30km Transmission Range Drone Video Transmitter , AES128-bit Encryption IP Video Data Transceiver , 300mW Dual-Power Amplifier Drone Communication System

Drone Video Transmitter IP Video Data Transceiver with 30km Range AES128-bit Encryption and 300mW Dual-Power Amplifier

This drone video transceiver works in pairs to provide a stable link for video data transmission. With its compact size and lightweight design, the 300mW dual-power amplifier enables transmission distances up to 30 kilometers.

Key Features

TDD OFDM IP video data transceiver ideal for drone systems
Supports point-to-point and point-to-multipoint networks
Controllable via web browser or serial port
3 Ethernet ports for audio/video transmission and 1 RS232/TTL channel for bidirectional data
300mW*2 RF dual power supply
Used in pairs - transmitter on drone and receiver on ground

Product Overview

The Hincn HCL600 duplex IP video data transceiver operates in the 600MHz or 1.4GHz bands with dual wireless data links. It combines FHSS (Frequency-Hopping Spread Spectrum) and TDD OFDM technology to ensure stable signal communication even during rapid movement.

Technical Specifications

Model Number	HCL600
Modulation	TDD OFDM
Frequency	566~678MHz and 1420~1530MHz
Bandwidths	3/5/10/20/40MHz
Throughput	Maximum 100Mbps
RF Transmission Power	300mW *2 (Each 300mW of the 2 antennas)
Constellation	QPSK, 16QAM, 64QAM, self-adaption
Sensitivity	-102dBm (1Mbps at 20MHz)
IP Data Transmission	3 Ethernet ports
Serial Data Transmission	1 channel RS232 or TTL
Transmission Range	1~2km (ground to ground), 5~22km (drone to ground)
Management	Through Web UI or Control UART
Encryption	AES128-bit encryption
Network Mode	Point-to-Point, Point-to-Multipoint, Relay, and Mesh
Movement Speed	Support maximum 120km/h
Power Input	7~18V
Power Consumption	<8W
Dimensions	83.761.419 mm
Weight	98g

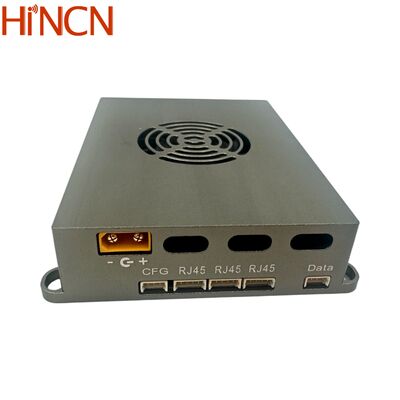

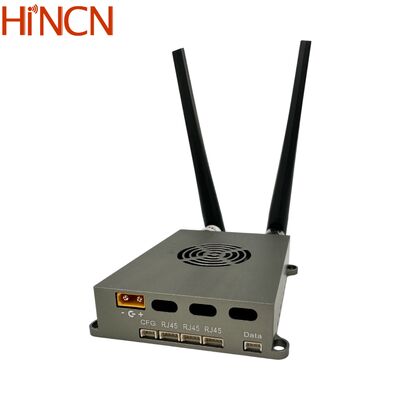

Input/Output Connections

Ethernet	3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART	RS232 data UART, 3PIN PH1.25mm connector
Control UART	TTL control UART, 3PIN PH1.25mm connector
Power In	XT30PW-M connector
ANT 1	Tx/Rx Antenna port, SMA female
ANT 2	Tx/Rx Antenna port, SMA female

Applications

The HCL600 duplex IP video data transceiver is a full-duplex communication radio designed for mobile communication systems, using separate channels for uplink and downlink transmission. This lightweight TDD OFDM modulation network IP radio with 300mW*2 RF power output meets the requirements of various drones and robots for video data transmission via IP camcorder or computer connection.

About Hincn Limited

Hincn Limited is a Hong Kong company specializing in HD video wireless transmission solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 9 employees, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
