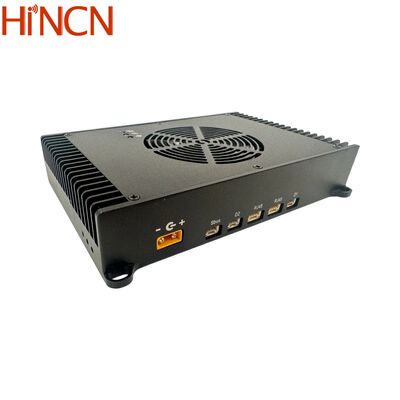

Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems

The HCL620 video data transmitter utilizes MIMO dual transmission and reception technology to overcome signal blockage during aircraft maneuvers while delivering throughput up to 100Mbps. This makes it ideal for high-speed video data transmission in demanding unmanned system applications.

In a MESH network configuration, each HCL620 MANET radio operates in peer-to-peer mode, creating a true mobile network. The system easily integrates with various unmanned platforms and connects directly to monitors, input devices, and sensors through multi-functional I/O ports, forming a complete Ground Control Station (GCS) or field data processing unit.

The HCL620 MANET network radio operates in either access node mode or central node mode, managed through the network user interface. It supports up to 64 access nodes connecting to a central node within the same wireless local area network, sharing the full transmission bandwidth (up to 100Mbps throughput). Data transmission is categorized as downlink (central to access node) and uplink (access to central node), with the ratio controllable via web UI. In point-to-point configurations, both uplink and downlink data streams share the complete transmission bandwidth.
