Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking

Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking
Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking
Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking

Large Image :  Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL611
Payment & Shipping Terms:
Minimum Order Quantity: 1 set (2 pcs)
Price: US$999.00~US$1,069
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,399sets/month
Contact Now Chat Now

Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking

Description
Modulation: TDD OFDM Frequency: 566~678MHz,1420~1530MHz
Bandwidths: 3/5/10/20/40MHz Throughput: Maximum 100Mbps
Sensitivity: -102dBm RF Transmissioin Power: 300mW
Highlight:

1.4GHz drone video transmitter

,

UAV OFDM wireless transmitter

,

Ethernet drone communication system

Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking
This drone UAV video transmitter is designed for wireless video data transmission with two-way wireless data link capability. This OFDM radio device operates at 600MHz and 1.4GHz bands, utilizing frequency hopping spread spectrum (FHSS) technology to ensure superior signal transmission stability.
Key Features
  • TDD OFDM two-way wireless transceiver for video data link
  • Up to 100Mbps Iperf throughput
  • Multiple networking types: point-to-point, point-to-multipoint Star Networking, or IP Mesh networking
  • Web UI or Serial UART for management
  • 2 Ethernet ports, 2 channels UART data port, SBUS in and SBUS out port for UAV data link
Technical Specifications
Attribute Value
Product name Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking
Modulation TDD OFDM
Frequency 566~678MHz, 1420~1530MHz
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps throughput
RF Transmission Power 300mW*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Ethernet ports 2 * Ethernet ports for IP data transmission
Serial ports 2 channels TTL 3.3V UART as default, RS232 optional for serial data transmission
SBUS ports SBUS-in and SBUS-out ports for SBUS signal transmission
Transmission Range 1~2km (ground to ground), 5~20km (UAV to Ground)
Management Web UI and Control UART
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay, Mesh
Movement Speed Support no less than 240km/h
Power Input 12~18V
Power Consumption <7W
Dimensions 83.7*61.4*20.2mm
Weight 106g
Input/Output Connections
Port Description
Ethernet*2 2 channel 4Pin GH1.25mm lockable connector, bridged inside with same IP address
UART1 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement
UART2 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. It can be set as control UART via web UI
SBUS 3Pin GH1.25mm lockable connector. SBUS-in and SBUS-out
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female

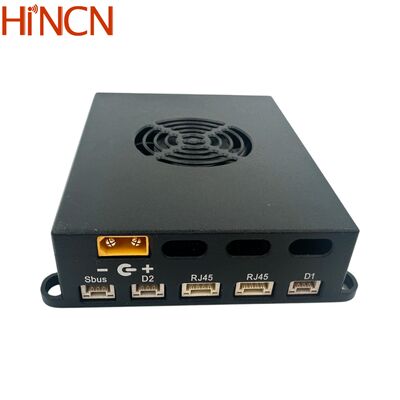

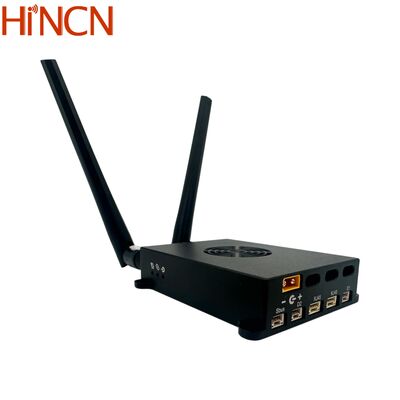

Appearance of the UAV Video Transmitter
Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking 0
Wireless Networking with HCL611
The HCL511 drone UAV video transmitter supports two operating modes: Access Node or Central Node. It can be managed through web UI and supports up to 64 Access Nodes connected to a Central Node. All nodes share the entire transmission bandwidth with maximum 100 Mbps throughput.
Data from the central node to the access node is referred to as downlink, while data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the Web UI.
Frequently Asked Questions
Q1. It seems to support IP camera, but I want HDMI or SDI video input?
The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission. Drone UAV Video Transmitter OFDM Two Way Communication 1.4GHz Ethernet Wireless Star Networking 1 At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
