UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System

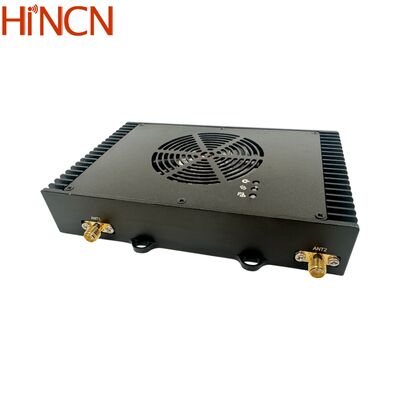

Large Image : UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System

Product Details:

Place of Origin:	China
Brand Name:	Hincn Limited
Model Number:	HCL620

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	US$1,969~3,569
Packaging Details:	carton package
Delivery Time:	5~8 working days
Payment Terms:	L/C,D/P,D/A,T/T,Western Union
Supply Ability:	1,999 sets

Contact Now Chat Now

UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System

Description

Video Input:	Ethernet/HDMI/SDI/AHD/AV	Rf Transmissioin Power:	10W
Transmission Range:	10km~150km	FHSS:	Support
Encryption:	AES128	Bandwidths:	3MHz, 5MHz, 10MHz, 20MHz, 40MHz

UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System

The HCL620 uses MIMO dual transmission and hybrid mesh networking technology to deliver stable, high-speed video and data links in complex environments.

Technical Specifications

Radio

Frequency	1420~1530MHz (customizable)
Bandwidth	3/5/10/20/40MHz
RF Power	10W×2
Modulation	OFDM
Constellation	BPSK; QPSK; 16QAM
Duplex	TDD
Throughput	Up to 100M bps
Encryption	AES128

Power

Air Unit	10W×2
Ground Unit	10W×2

Size and Weight

Air Unit	131×93.7×24.8mm / 277g
Ground Unit	131×93.7×24.8mm / 277g

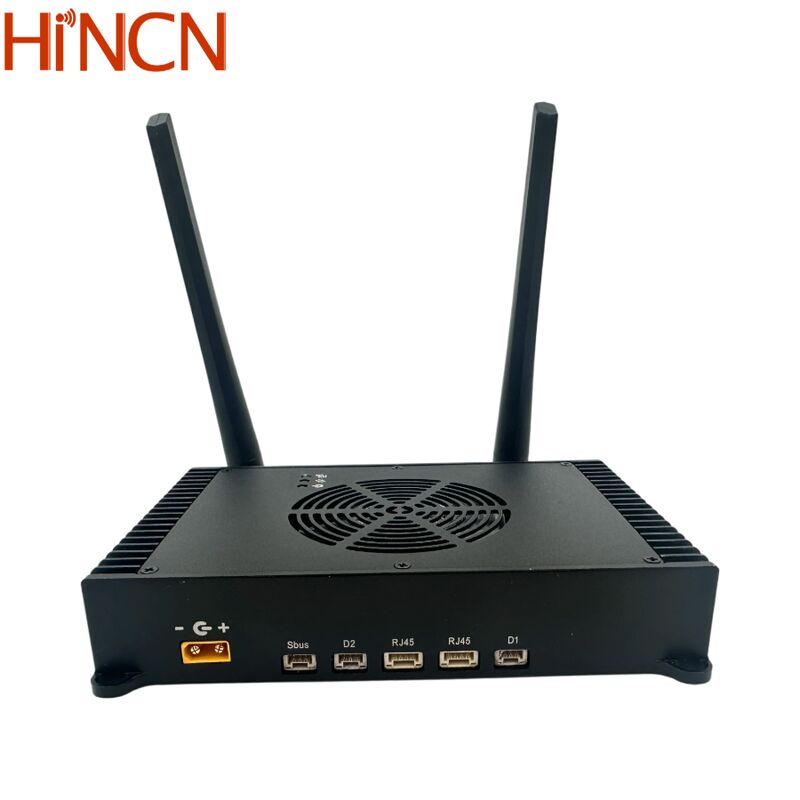

Connectivity

Antenna	SMA×2
Video Interface	Ethernet×2
Other Interface	2×TTL/RS232, S.bus

Environment

Working Temperature	-40°C~60°C

Applications

This UAV Long Range Video Transmitter is widely used in:

Aerial surveillance
Search & rescue
Industrial inspection
Mapping & survey

Frequently Asked Questions

Q1. Can I get a sample order for this UAV video transmitter?

A1: Sure, welcome sample order for testing.

Q2. Does this UAV video transmitter support any other cameras except IP camera?

A2: IP camera video can be connected directly via Ethernet port. HDMI/SDI/AHD/AV camera video requires encoding with our SE10/SE11 encoder before connecting to HCL620 via Ethernet.
