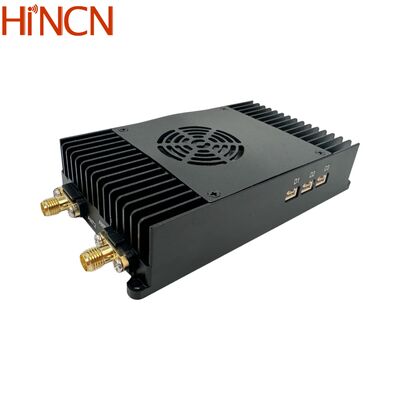

300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support

300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support
300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support 300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support

Large Image :  300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL536-300mW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set (2 pcs)
Price: US$529~US$699
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,679sets/month
Contact Now Chat Now

300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support

Description
Modulation: TDD OFDM/COFDM Frequency: 806~826MHz,1428~1468MHz,1420~1530MHz
Bandwidths: 1.4/3/5/10/20MHz Throughput: Maximum 30Mbps@20MHz
RF Transmissioin Power: 300mW Transmission Range: 10km
Highlight:

300mW Video Data Link

,

10km Range Drone Video Transmitter

,

TDD OFDM Modulation Wireless Video Transceiver

300mW 10km Drone Video Data Link Network
This advanced drone video data link supports star networking architecture, providing reliable wireless communication channels for control and telemetry within the 1.4 MHz to 1.5 GHz frequency range.
Key Features
  • TDD OFDM Modulation Technology
  • Maximum 30Mbps throughput @20MHz bandwidth
  • Web UI or Serial UART for system management
  • Dual Ethernet ports with 3-channel serial data transmission
  • Uplink and downlink data stream control capabilities
Technical Specifications
Model NumberHCL536-300mW
ModulationTDD OFDM
Frequency Range806~826MHz, 1428~1468MHz, 1420~1530MHz
FHSS SupportYes
Bandwidth Options1.4/3/5/10/20MHz
Maximum Throughput30Mbps @20MHz
RF Transmission Power300mW
ConstellationQPSK, 16QAM, 64QAM self-adaption
Sensitivity-108dBm (1Mbps)
Ethernet Ports2 * Ethernet ports
Serial Ports3 channels (3*RS232, 3*TTL or 2*RS232/TTL + 1*Sbus)
Transmission Range10km (UAV to Ground)
Management InterfaceWeb UI and Control UART
EncryptionAES128
Networking ModePoint to Point, Point to Multipoint, Relay, Mesh
Movement Speed Support≥300km/h
Power Input12~18V
Dimensions103.4 * 61.4 * 22mm
Weight142g

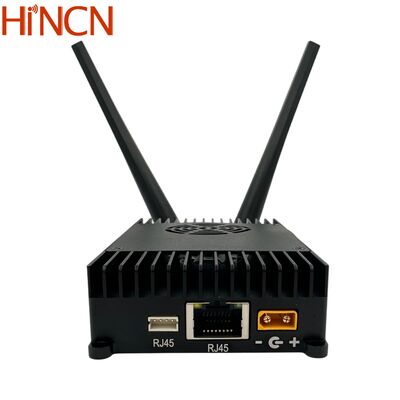

Input/Output Connections
Ethernet 14Pin ZH1.5mm connector, bridged with Ethernet2
Ethernet 2RJ45 connector, bridged with Ethernet1
UART * 33Pin GH1.25mm lockable connector * 3, 3 channel UART, RS232/TTL/Sbus optional
Power InputXT30PW-M connector
ANT 1Tx/Rx Antenna port, SMA female
ANT 2Rx Antenna port, SMA female
300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support 0
The HCL536-300mW video data link supports two operating modes: Access Node or Central Node. This web-controlled wireless video transmitter supports up to 16 Access Nodes connected to one Central Node, with all nodes sharing the entire transmission bandwidth (maximum 30 Mbps @ 20 MHz throughput). The system allows control of uplink and downlink data stream ratios through the Web UI interface.
Frequently Asked Questions
Q1. This video data link supports IP cameras. What if I want HDMI or SDI video input?
The default video input is through the IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD, or AV output, we recommend using our mini encoder device to encode the video/audio signals into digital data for transmission. At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device converts the digital data back into HDMI video and audio signals.
300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support 1
Q2. For the 800MHz and 1.4G bands, which one would be better?
If your local area has DVB-T or DVB-T2 digital television signals in the 170-860MHz range, the 1.4G band would be preferable. Additionally, since GPS antennas on drones point upward and transmitter antennas point downward, the 1.4G frequency has negligible effect on GPS signal reception.
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. With a team of 13 employees, including 3 programmers and 2 engineers, we maintain long-term cooperative relationships with industry leaders ADI, Xilinx, Altera, and Morningcore. We serve as a third-party design partner for both ADI and Morningcore.
300mW 10km Range Drone Video Transmitter with TDD OFDM Modulation and Uplink Downlink Support 2
