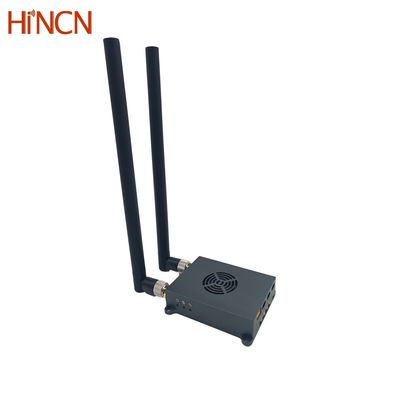

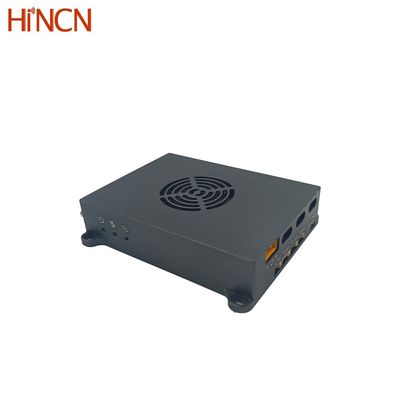

30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking

30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking
30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking
30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking 30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking 30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking

Large Image :  30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL600-300mW*2-S2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$969~US$1,189
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2799pcs/month
Contact Now Chat Now

30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking

Description
Modulation: TDD OFDM/ COFDM Frequency: 566~678MHz Or 1420~1530MHz
RF Power: 300mW *2( Each 300mW Of The 2 Antennas) Sensitivity: -102dBm(1Mbps At 20MHz)
Transmission Range: 30km FHSS: Support
Highlight:

mini size drone video transmitter

,

30km range drone transmitter receiver

,

FHSS P2MP drone video transmitter

30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking
High-performance wireless transceiver system designed for drone UAV and UGV video data transmission with extended range capabilities.
Key Features
  • TDD OFDM wireless transceiver for Drone UAV/UGV video data transmission
  • Supports both point-to-point and point-to-multipoint networks
  • Web browser or UART control interface
  • 3 Ethernet ports and 1 RS232/TTL channel for comprehensive data links
  • FHSS (Frequency Hopping Spread Spectrum) technology for secure transmission
Technical Specifications
Model Number HCL600-300mW*2-S2
Modulation TDD OFDM/COFDM
Frequency 566~678MHz band and 1420~1530MHz band
Bandwidths 3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF Transmission Power 300mW *2 (Each 300mW of the 2 antennas)
Constellation QPSK, 16QAM, 64QAM, self-adaption
Sensitivity -102dBm (1Mbps at 20MHz)
IP Data Transmission 3 Ethernet ports
Serial Data Transmission 1 channel RS232 or TTL
Transmission Range 1~2km (ground to ground), 30km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network Mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh
Movement Speed Supports no less than 120km/h
Power Input 7~18V
Power Consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g
30km Mini Size Drone Video Transmitter Receiver Support FHSS P2MP Star Networking 0
Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART, 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Star Wireless Networking
The HCL600-300mW*2-S2 supports two operation modes: access node or central node with web UI management. It supports up to 63 access nodes connected to one central node, all within the same wireless local area network sharing up to 100Mbps throughput.
Data transmission is categorized as downlink (central to access node) and uplink (access to central node). The stream ratio can be controlled via Web UI. In point-to-point mode, the entire 100Mbps bandwidth is shared between uplink and downlink.
Supported networking modes include: point-to-point, point-to-multipoint, and relay configurations.
Our Service
Hincn offers comprehensive customization services including design customization, sample customization, and OEM/ODM solutions.
Frequently Asked Questions
Q: Does the model have a more advanced version that supports long range video data transmission, such as 100km or more?
A: Yes, HCL602 and HCL605 radio devices support much longer range, with capability for up to 150km wireless video data transmission.
