Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems

Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems
Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems

Large Image :  Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$999~US$1,268
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,789pcs/month
Contact Now Chat Now

Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems

Description
RF Power: 300mW *2( Each 300mW Of The 2 Antennas) Encryption: AES128-bit
Transmission Range: 30km( Drone To Ground) Frequency: 566~678MHz And 1420~1530MHz
Flexible Channel Bandwidths: 3MHz, 5MHz, 10MHz, 20MHz, 40MHz ODM/ODM: Support
Highlight:

drone video transmitter with stable communication

,

IP video data transceiver for drones

,

drone systems video transmitter transceiver

Drone Video Transmitter IP Video Data Transceiver
This drone video transceiver works in pair, providing stable communication for drone systems with reliable video data transmission. Compact and lightweight design with 300mW dual-power amplifier enables transmission distances up to 30 kilometers.
Key Features
  • TDD OFDM IP video data transceiver ideal for drone systems
  • Supports point-to-point and point-to-multipoint networks
  • Controllable via web browser or serial port
  • 3 Ethernet ports for audio/video transmission and 1 RS232/TTL channel for bidirectional data link
  • 300mW*2 RF dual power supply
  • Used in pairs - transmitter on drone and receiver on ground (same hardware, different settings)
Overview
Hincn HCL600 duplex IP video data transceiver operates in the 600MHz or 1.4GHz bands with dual wireless data link. It combines FHSS (Frequency-Hopping Spread Spectrum) and TDD OFDM technology to ensure stable signal communication even during rapid movement conditions.
Technical Specifications
Model Number HCL600
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF Transmission Power 300mW *2 (Each 300mW of the 2 antennas)
Constellation QPSK, 16QAM, 64QAM, self-adaption
Sensitivity -102dBm (1Mbps at 20MHz)
IP Data Transmission 3 Ethernet ports
Serial Data Transmission 1 channel RS232 or TTL
Transmission Range 1~2km (ground to ground), 5~22km (drone to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network Mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh
Movement Speed Support maximum 120km/h
Power Input 7~18V
Power Consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g
Drone Video Transmitter IP Video Data Transceiver Provide Stable Communication For Drone Systems 0

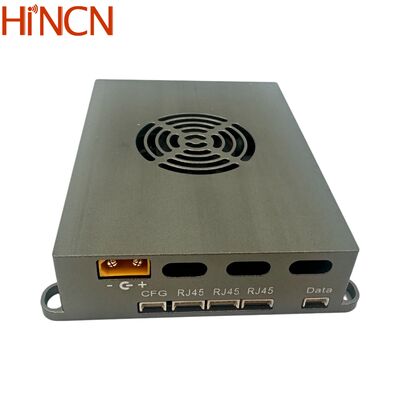

Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART, 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector

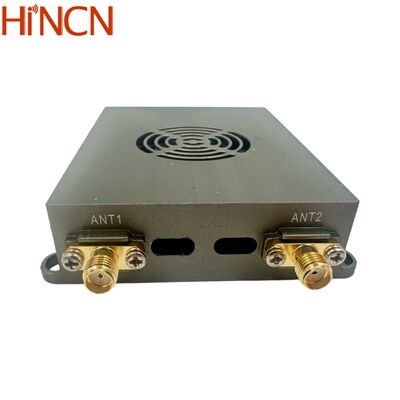

ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Applications
HCL600 duplex IP video data transceiver is a new type of full duplex communication radio used in mobile communication systems, utilizing two separate channels for uplink and downlink transmission. This lightweight TDD OFDM modulation network IP radio with 300mW*2 RF power output meets the requirements of various drones and robots for video data transmission via IP camcorder or computer connection.
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless transmission solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 9 employees, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
