Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

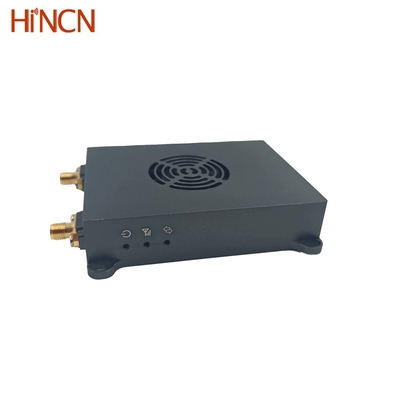

Large Image :  Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL601
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$1,178~US$1,268
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 799pcs/month
Contact Now Chat Now

Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission

Description
Modulation: TDD OFDM/ COFDM Frequency: 566~678MHz Or 1420~1530MHz
RF Power: 300mW *2( Each 300mW Of The 2 Antennas) Sensitivity: -102dBm(1Mbps At 20MHz)
Encryption: AES128-bit OEM/ ODM: Support
Highlight:

drone video transmitter anti-jamming

,

drone video transmitter serial data

,

drone video receiver with transmitter

Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Key Features
  • TDD OFDM wireless transmitter and receiver suitable for Drone UAV UGV video data Link
  • Supports point to point and point to multipoint networks
  • Control by web browser or control uart
  • 3 Ethernet and 1 channel RS232/TTL for drone data link
  • Wireless video data transmission with 300mW*2 RF power amplifier
  • Uplink and downlink stream control
Overview
Hincn HCL601 transmitter and receiver for drone operates in the 600MHz or 1.4GHz bands with bidirectional wireless data link, and frequency hopping spread spectrum technology (FHSS) make it has better stability of signal communication.
Technical Specifications
Product name Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission
Model number HCL601
Modulation TDD OFDM/ COFDM
Frequency 566~678MHz band and 1420~1530MHz band
Bandwidths 3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 300mW *2 (Each 300mW of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet ports
Serial data transmission 1 channel RS232 or TTL
Transmission range 1~2km (ground to ground), 5~22km (UAV to ground)
Management Trough Web UI or Control uart
Encryption AES128-bit encryption
Network mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh(specify)
Movement speed Support no less than 120km/h
Power input 7~18V
Power consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g
Anti-Jamming Video Transmitter And Receiver For Drone With Serial Data Transmission 0

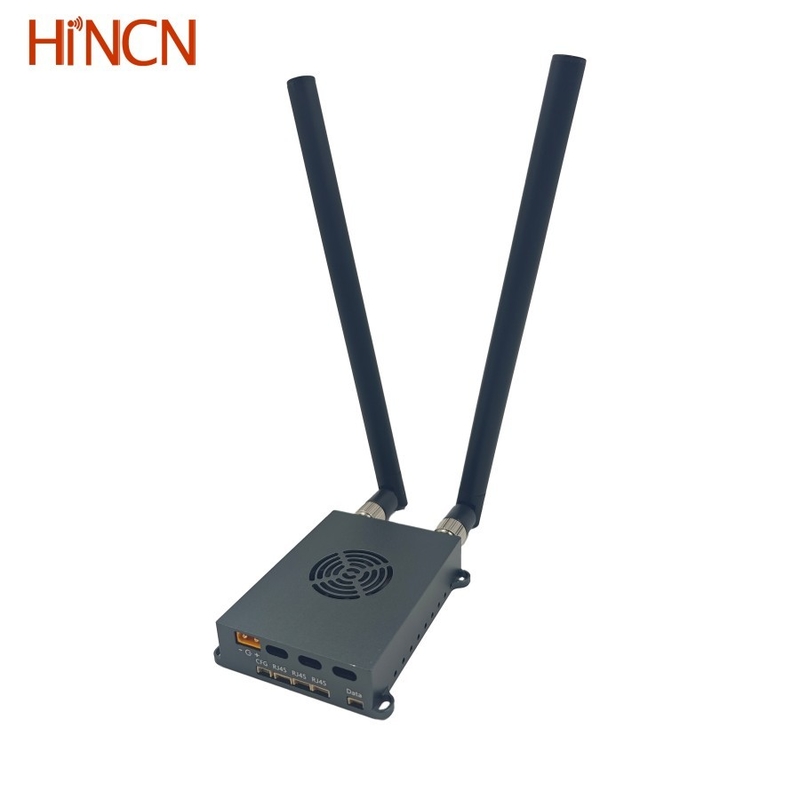

Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART, 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Wireless Networking Modes
HCL601 supports two operation modes: access node or central node. It can be managed through web UI. Supports up to 63 access nodes connected to one central node. All nodes are in the same wireless local area network and share the entire transmission bandwidth (up to 100Mbps throughput).
Data from the central node to the access node is called the downlink; data from the access node to the central node is called the uplink. Stream ratio of the uplink and downlink can be controlled through the Web UI. When using it for point-to-point transmission, the uplink and downlink also share the entire transmission bandwidth (up to 100Mbps throughput).
The supported networking modes include: point-to-point, point-to-multipoint, relay and mesh.
Frequently Asked Questions
Q1. Does this transmitter and receiver for drone support any other cameras except IP camera?
A: IP camera video can be connected with it directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with it via Ethernet connection.
Q2. Does the model have a more advanced version that supports longer-distance video data transmission?
A: Yes, HCL602 and HCL605 radio devices support much longer range, support up to 100km wireless video data transmission.
