300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink

300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink
300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink
300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink 300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink 300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink

Large Image :  300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL536-300mW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set (2 pcs)
Price: US$529~US$699
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1,679sets/month
Contact Now Chat Now

300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink

Description
Modulation: TDD OFDM/COFDM Frequency: 806~826MHz,1428~1468MHz,1420~1530MHz
Bandwidths: 1.4/3/5/10/20MHz Throughput: Maximum 30Mbps@20MHz
RF Transmissioin Power: 300mW Transmission Range: 10km
Highlight:

300mW drone video data link

,

10km range video transmitter receiver

,

drone uplink downlink video system

300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink
This drone video data link supports star networking, providing wireless communication channels for control and telemetry within the frequency range of 1.4 MHz to 1.5 GHz.
Key Features
  • Modulation: TDD OFDM
  • Maximum 30Mbps @20MHz bandwidth
  • Web UI or Serial UART for management
  • 2 Ethernet ports and 3 channels serial data transmission
  • Support uplink and downlink data stream control
Technical Specifications
Product Name 300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink
Model Number HCL536-300mW
Modulation TDD OFDM
Frequency 806~826MHz, 1428~1468MHz, 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 300mW
Constellation QPSK,16QAM,64QAM self adaption
Sensitivity -108dBm(1Mbps)
Ethernet Ports 2 * Ethernet ports
Serial Ports 3 channels, 3*RS232, 3*TTL or 2*RS232/TTL + 1*Sbus
Transmission Range 10km (UAV to Ground)
Management Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay, Mesh
Movement Speed Support no less than 300km/h
Power Input 12~18V
Dimensions 103.4*61.4*22mm
Weight 142g
Input/Output Connections
Port Description

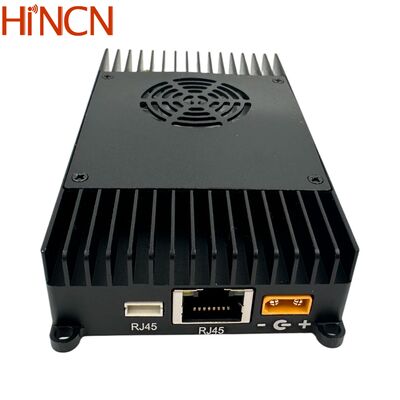

Ethernet 1 4Pin ZH1.5mm connector, bridged with Ethernet2
Ethernet 2 RJ45 connector, bridged with Ethernet1
Uart* 3 3Pin GH1.25mm lockable connector*3, 3 channel uart, RS232/TTL/Sbus optional
Power in XT30PW-M connector

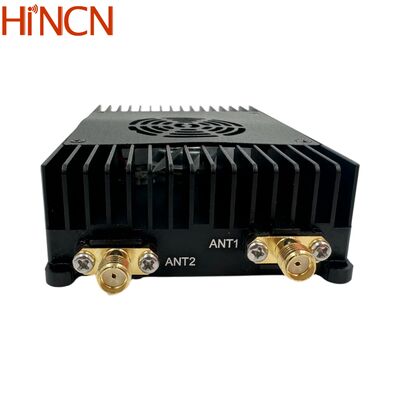

ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Rx Antenna port, SMA female
300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink 0
HCL536-300mW video data link supports 2 operating modes: Access Node or Central Node. It is a web controlled wireless video transmitter and supports up to 16 Access Nodes connected to one Central Node. All nodes share the entire transmission bandwidth (maximum 30 Mbps @ 20 MHz throughput). The data from the central node to the access node is referred to as downlink, while the data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the Web UI.
Frequently Asked Questions
Q1. This video data link support IP camera, what if I want HDMI or SDI video input?
The default video input is IP RJ45 Ethernet port. For cameras with HDMI, SDI, AHD or AV output, we recommend using our mini encoder device to encode the video/audio signal into digital data for transmission. At the receiver end, you can connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back into HDMI video and audio signals.
300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink 1
Q2. For the 800MHz and 1.4G band? Which one would be better?
If your local area has DVB-T or DVB-T2 digital television signal in the 170-860Mhz range, the 1.4G band would be better. Additionally, since GPS antennas on drones point upward and transmitter antennas point downward, the 1.4G frequency has negligible effect on GPS signals.
About Us
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We have a total of 13 employees, including 3 programmers and 2 engineers. Our company has a long-term cooperative relationship with ADI, Xilinx, Altera and Morningcore. We are the third-party design partner for both ADI and Morningcore.
300mW 10km Drone Video Data Link Network Video Transmitter Receiver With Uplink And Downlink 2
