Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance

Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance
Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance

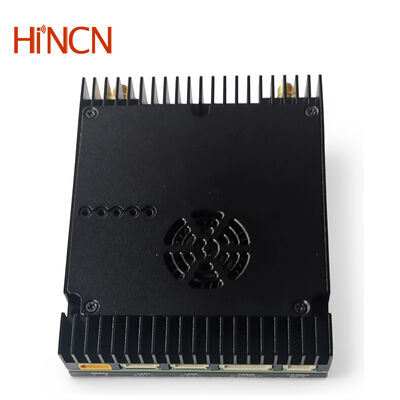

Large Image :  Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance

Product Details:
Place of Origin: China
Brand Name: Hincn Limited
Model Number: HCL801
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$986~1,108
Packaging Details: carton package
Delivery Time: 5~8 working days
Payment Terms: L/C,D/P,D/A,T/T,Western Union
Supply Ability: 1,986 sets
Contact Now Chat Now

Robust Video Data Link solution tailored for UAV swarm missions offering long distance coverage and video streaming performance

Description
Video Input: Ethernet Transmit Power: 1W*2
Transmit Distance: 30~ 60KM(Air To Ground) Encryption: AES256
Frequency: 634MHz~2500MHz OEM/ODM: Support
Highlight:

UAV swarm video data link

,

long distance video streaming solution

,

robust video data link

Robust Video Data Link for UAV Swarm Missions
Advanced long-range video data link solution specifically engineered for UAV swarm operations, delivering exceptional coverage distance and high-performance video streaming capabilities.
Long Range UAV MESH Video Transmission Technology
The UAV MESH video data link system is engineered for applications demanding stable, extended-range communication. Unlike traditional point-to-point wireless video transmitters, MESH networking delivers superior flexibility and scalability.
Key Advantages
  • Long-range wireless video transmission
  • Multi-UAV networking capability
  • Dynamic network self-organization
  • Real-time HD video streaming
  • Low latency communication
  • Reliable data transmission in complex environments
This comprehensive system supports simultaneous transmission of video, telemetry data, and control commands, making it ideal for professional UAV platforms, target drones, autonomous aircraft, and industrial unmanned systems.
Technical Specifications
Model Number HCL801
Frequency Bands 634~674MHz, 790~820MHz, 1300~1400MHz, 1350~1450MHz, 1420~1530MHz, 1625~1725MHz, 1660~1710MHz, 1710~1785MHz, 2200~2300MHz, 2400~2500MHz
FHSS Support
In-band Interference Resistance Maintains normal communication and data transmission when interference proportion is less than 15%
Configurable Bandwidths 1.25M/2.5M/5M/10M/20MHz
Maximum Throughput 47 Mbps
RF Transmission Power 1W*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -104dBm(1Mbps@20MHz)

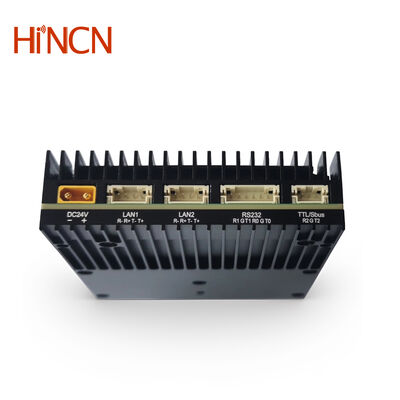

Ethernet Ports 2 * Ethernet ports for IP data transmission
Serial Ports Two RS232 UARTs, one TTL 3.3V UART (Sbus optional)
Transmission Range 2~5km (ground-to-ground), 30~60km (UAV-to-ground)
Control Interface Web UI and Control Uart
Encryption AES256
Networking Modes Mesh, Point to Point, Point to Multipoint, Relay
Movement Speed Support 800 km/h for frequencies above 1 GHz; Mach 1.5 for 800 MHz band
Power Input 20~28V
Power Consumption Maximum: ~20W; Idle: ~6W
Dimensions 98.7*81*23.3mm
Weight 230g
HCL801 UAV MESH Video Data Link System
Professional Applications
UAV Swarm Operations
Enables seamless communication between multiple drones for coordinated mission execution
Target Drone Systems
Provides stable video and data links for remote-controlled aerial targets
Emergency Response
Supports rapid deployment communication networks for disaster areas
Border and Security Monitoring
Delivers long-range aerial surveillance communication capability
Industrial UAV Applications
Supports inspection, mapping, and remote monitoring tasks
Professional OEM/ODM UAV Data Link Manufacturer
As an experienced UAV communication system manufacturer in China, Hincn Limited provides comprehensive customized OEM and ODM services tailored to specific customer requirements.
Customization Capabilities
  • Hardware structure customization
  • RF frequency configuration
  • Transmission power optimization
  • Antenna solution design
  • Firmware and software customization
  • Communication protocol integration
  • System performance tuning
Whether customers require compact UAV video transmitters or complete swarm communication solutions, our engineering team delivers professional development support from prototype design through mass production.
