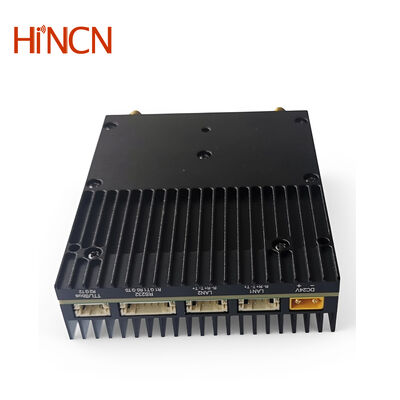

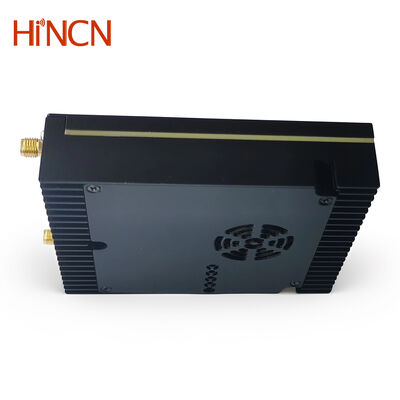

Advanced MIMO MANET Video Data Link for Next-Generation UAV Swarm Communication
Hincn Limited introduces the Advance MIMO MANET Video Data Link System, a high-performance wireless communication solution designed for long range mesh networks, UAV swarm control, and target drone communication applications. Integrating advanced MIMO (Multiple Input Multiple Output) technology with MANET (Mobile Ad Hoc Network) architecture, this system delivers reliable, flexible, and low-latency wireless connectivity for complex unmanned platforms.
Designed for professional UAV applications, the MIMO MANET video data link enables multiple airborne nodes to establish a self-organizing communication network without relying on fixed infrastructure. It provides stable HD video transmission, telemetry communication, and control data exchange, making it an ideal solution for drone swarms, unmanned aerial vehicles, autonomous systems, and mission-critical communication environments.
Long Range MIMO Mesh Network Technology for UAV Swarm Control
Traditional point-to-point wireless links can face limitations when multiple UAVs operate simultaneously or when communication environments become challenging. The long range MESH video data link system overcomes these challenges by using MANET networking technology to create a dynamic and expandable wireless communication network.
Each UAV equipped with this system can act as a communication node, automatically forwarding video and data between connected platforms. This decentralized network architecture improves coverage distance, enhances communication reliability, and allows UAV swarms to maintain connectivity during complex flight missions.
Key Features
- Long-range wireless video transmission
- MIMO enhanced communication performance
- MANET self-forming mesh network
- Multi-UAV swarm networking capability
- Real-time HD video and telemetry transmission
- Low latency control communication
- Flexible node expansion
Technical Specifications
| Model Number | HCL801 |
| Frequency | 634~674MHz, 790~820MHz, 1300~1400MHz, 1350~1450MHz, 1420~1530MHz, 1625~1725MHz, 1660~1710MHz, 1710~1785MHz, 2200~2300MHz, 2400~2500MHz |
| FHSS | Support |
| In-band Interference Resistance | When the proportion of interference received by the HCL801 in-band signal is less than 15%, normal communication and data transmission can be ensured. |
| Bandwidths | 1.25M/2.5M/5M/10M/20MHz bandwidth configurable |
| Throughput | Maximum 47 Mbps throughput |
| RF Transmission Power | 1W*2 |
| Constellation | QPSK, 16QAM, 64QAM self adaption |
| Sensitivity | -104dBm(1Mbps@20MHz) |
| Ethernet Ports | 2 * Ethernet ports for IP data transmission |
| Serial Ports | Supports serial data transmission: two RS232 UARTs, one TTL 3.3V UART (Sbus optional) |
| Transmission Range | 2~5km (ground-to-ground), 30~60km (UAV-to-ground) |
| Control By | Web UI and Control Uart |
| Encryption | AES256 |
| Networking Mode | Mesh, Point to Point, Point to Multipoint, Relay |
| Movement Speed | Supported movement speed: the lower the frequency, the greater the supported mobile speed. For frequencies above 1 GHz (such as 1.4 GHz), the supported mobile speed is 800 km/h. The 800 MHz band supports a mobile speed of Mach 1.5. |
| Power Input | 20~28V |
| Power Consumption | Maximum working power consumption: about 20W; The power consumption when no data is transmitted is around 6W. |
| Dimensions | 98.7*81*23.3mm |
| Weight | 230g |
Reliable Video Data Link for Target Drone Communication
The Advance MIMO MANET Video Data Link System is specifically designed for demanding applications such as target drone communication, UAV training systems, autonomous aircraft, and industrial unmanned platforms.
With optimized RF performance and robust anti-interference capability, the system ensures continuous communication between airborne units and ground control stations. Operators can receive real-time video feeds while maintaining stable command and telemetry links.
System Capabilities
- UAV remote control communication
- Drone swarm coordination
- Target drone flight monitoring
- Autonomous mission management
- Aerial surveillance applications
- Emergency communication deployment
Professional UAV Communication OEM/ODM Manufacturer in China
Hincn Limited provides customized OEM/ODM wireless video data link solutions for global UAV manufacturers, system integrators, and professional communication users.
Customization Services
- Frequency band customization
- Transmission power adjustment
- Hardware structure design
- Antenna optimization
- Embedded software development
- Network protocol integration
- System performance tuning
From prototype development to large-scale production, Hincn supports customers with professional RF design capabilities, manufacturing experience, and application-focused engineering solutions.
Advanced Applications of MIMO MANET Video Data Link System
The MIMO MANET communication platform is widely used in industries requiring secure and reliable wireless connectivity.
UAV Swarm Operations
Supports coordinated communication between multiple drones for collaborative missions and autonomous operations.
Target Drone Systems
Provides stable video and control links for aerial target platforms and flight training applications.
Defense and Security Communication
Offers flexible mesh networking for mobile communication scenarios requiring rapid deployment.
Emergency Response Networks
Creates temporary wireless communication infrastructure for disaster areas and remote locations.
Industrial Unmanned Systems
Enables reliable data exchange for inspection drones, autonomous vehicles, and robotic platforms.
Why Choose Hincn Advance MIMO MANET Video Data Link?
As an experienced UAV video data link manufacturer and wireless communication solution provider in China, Hincn Limited focuses on developing advanced technologies for professional unmanned systems.
Advanced MIMO wireless transmission technology
MANET mesh networking capability
Long-distance video and data communication
Custom OEM/ODM development support
Professional UAV communication R&D team
Global application experience
Conclusion
The Advance MIMO MANET Video Data Link System Supporting Long Range Mesh Networks For UAV Swarm Control And Target Drone Communication provides a powerful communication foundation for modern unmanned applications. By combining MIMO technology, MANET networking, long-range transmission, and real-time video communication, it enables reliable connectivity for UAV swarms, target drones, and autonomous systems.
Hincn Limited continues to deliver customized long range MESH video data link solutions, UAV communication systems, and OEM wireless transmission products for customers worldwide.
Hincn provides advanced MIMO MANET video data link systems with long range mesh networking for UAV swarm control, target drone communication, and professional OEM/ODM wireless solutions.
