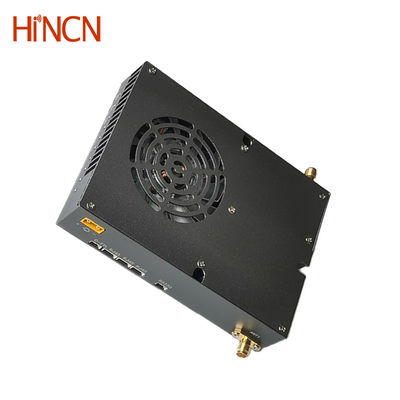

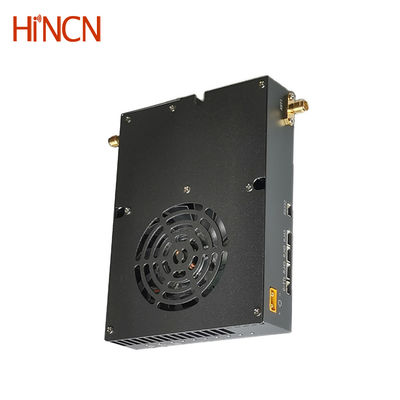

100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver

100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver
100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver
100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver 100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver 100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver

Large Image :  100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL605-5W*1-M9-L4H2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$1,769~US$1,999
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2080pcs/month
Contact Now Chat Now

100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver

Description
RF Power: 5W *2( Each 5W Of The 2 Antennas) Sensitivity: -102dBm(1Mbps At 20MHz)
Network Mode: Mesh Power Input: 24~30V
Anti-jamming: Support Air-to-ground LOS(light Of Sight) Distance: ≥100km
Highlight:

100km UAV video data link

,

Mesh networking video data transmitter

,

FHSS OFDM video data receiver

100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver
The HCL605-5W*1-M9-L4H2 UAV video data link is designed for long-range wireless transmission of video data, supporting 600MHz or 1.4GHz frequency bands and FHSS technology.
Key Features
  • TDD OFDM wireless transceiver for long range UAV video data Link
  • Up to 100Mbps Iperf Throughput
  • Supports Mesh Networks
  • Interface through web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL data link
  • Support FHSS (Frequency Hopping Spread Spectrum)
  • Support OEM and ODM UAV communication data link
Technical Specifications
Name 100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver
Modulation TDD OFDM
Model number HCL605-5W*1-M9-L4H2
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 5W *2 (Each 5W of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet port
Serial data transmission 1 channel RS232 or TTL
Transmission range Maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <2A at 12V
Dimensions 113.9*83.7*23.3 mm
Weight 243g
100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver 0
Input/Output
Port Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Wireless MESH Networking
The HCL605-5W*1-M9-L4H2 UAV video data link supports mesh networking with maximum 4 Nodes-2 hops and shared 60Mbps Iperf Throughput. We have higher version maximum support 32 Nodes and shared 100Mbps - please specify if needed.
100km UAV Video Data Link Support Mesh Networking FHSS OFDM Transmitter Receiver 1

Tag:

anti-jamming uav video data link,

fhss uav video data link,

cofdm video data link
