COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

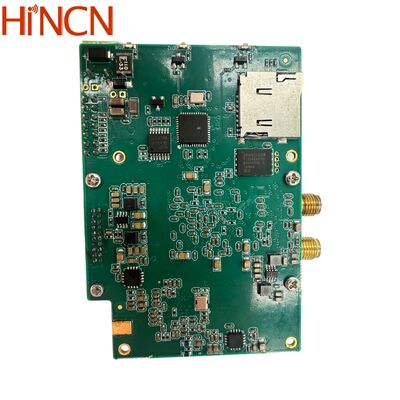

Large Image :  COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCT-226F-M
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 898.00~US$1,095.00
Packaging Details: carton package
Delivery Time: 1 week
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1,987pcs/month
Contact Now Chat Now

COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver

Description
Input Voltage: 7~24VDC Modulation: COFDM
Rf Transmission Power: 25±2 DBm+ 5W External Power Amplifier Bandwidths: 1MHz~8MHz Adjustable
Working Mode: Frequency Division Duplexing OEM/ODM: Support
Highlight:

COFDM wireless video transceiver module

,

two-way FDD video transmitter

,

wireless video receiver with FDD

COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver
The COFDM Video Transmitter And Receiver Module is a bidirectional wireless link system consisting of two independent one-way wireless channels operating on different frequency bands. This Frequency Division Duplexing (FDD) design ensures that when one wireless link experiences interference, it does not affect data transmission on the other channel. The system features Ethernet port support for TCP/UDP/IP protocols.
Key Features
  • COFDM two-way FDD (Frequency Division Duplexing) wireless transceiver
  • Transmission frequency range: 70MHz~4GHz, reception frequency range: 160MHz~860MHz
  • 1 Ethernet port and 1 data UART port
  • Bidirectional transparent data transmission via Ethernet/UART ports
  • AES256 encryption/decryption for secure communications
  • Control UART for device management via AT commands
  • Wireless transmission delay less than 30ms
  • Stable signal transmission in NLOS (non-line-of-sight) environments and high-speed movement conditions
  • Support for Ethernet/UART connection for broadcast transmission of IP data/UART data
System Overview
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver 0
Technical Specifications
Input/Output Interfaces
Interface Specification
RF Output MMCX female
RF Input Two SMA female 50Ω, supporting diversity reception
TTL 3.3V Control UART 4PIN PH1.25mm Connector
TTL 3.3V Data UART 3PIN PH1.25mm Connector
Power Input 2PIN PH2.54mm Phoenix Connector
Ethernet Port 4PIN PH1.25mm Connector
TF-card For firmware update
Power LED Red constant light when device is normal powered
Tx LED Green blinks on transmitting
Rx LED Green blinks on receiving
Modulation/Demodulation
Parameter Specification
Modulation COFDM
Carriers 2K
Bandwidth Configurable from 1MHz to 8MHz, step by 1KHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
RF Transmission
Parameter Specification
Frequency 70MHz~4GHz
Tuning Step Size 1KHz
RF Power Configurable, maximum -5dBm
RF Reception
Parameter Specification
Frequency 160MHz~860MHz
Tuning Step Size 1KHz
Sensitivity -97±1dBm (BW=8MHz, QPSK, CR=2/3, GI=1/16) for one channel and add 3dBm for two channels
Additional Specifications
Parameter Specification
Control Config Panel or other device via control UART (AT command)
Operating Temperature -40° to +70°C Ambient
Storage Temperature -40° to +85°C
Size 73x51x11mm (not including connectors out of the board)
Input Voltage 7~24VDC
Power Consumption <250mA@12V
Product Views

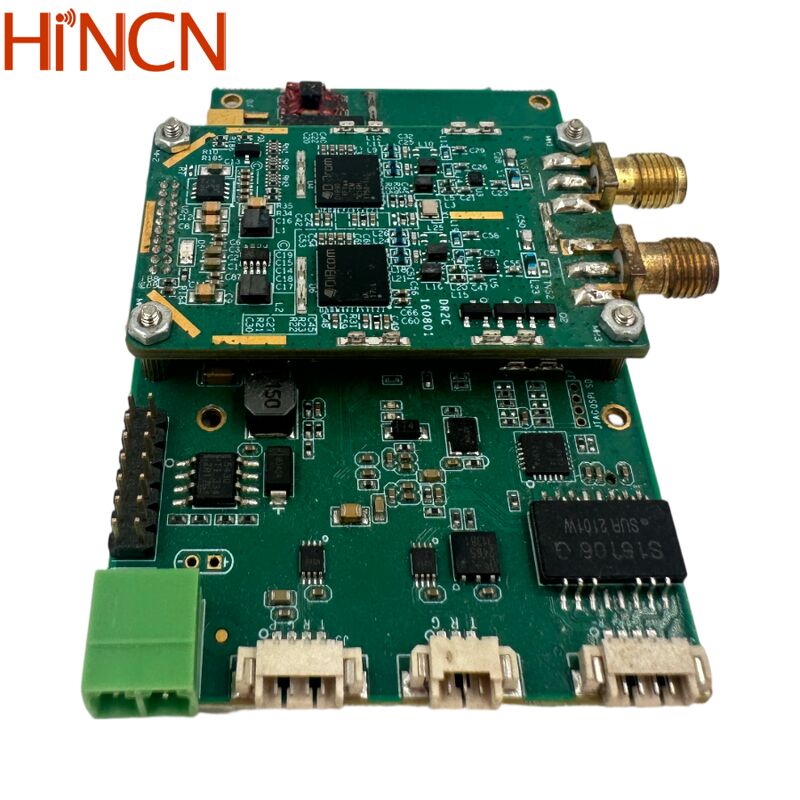

COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver 1
Front view of COFDM Video Transmitter and Receiver Module
COFDM Video Transmitter And Receiver Module Two-way FDD Wireless Transceiver 2
Back view of COFDM Video Transmitter and Receiver Module
