HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter

HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter
HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter

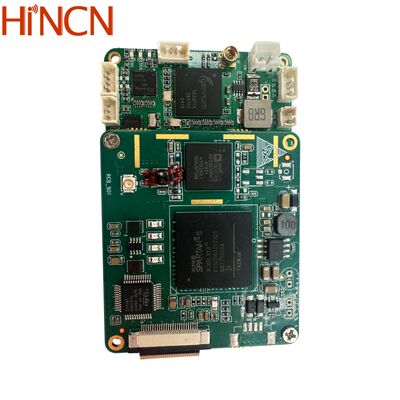

Large Image :  HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCT225-M
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: US$898.00~US$998.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 1,600 pcs/ month
Contact Now Chat Now

HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter

Description
Wireless Modulation: COFDM Video Input: SDI Or AHD
Management: Control Panel Or Serial Port Encode: H265/H264
Bit Rates: 0.5Mbps To 31.67Mbps Crypto: CTR-AES-256 Encryption
Highlight:

HD-SDI AHD wireless video transmitter

,

COFDM video transmitter and receiver

,

wireless video transmission module

HD-SDI AHD Video Transmitter and Receiver Module COFDM Wireless Video Transmitter
Compact HD-SDI and AHD video transmitter and receiver module featuring COFDM modulation for reliable wireless video transmission in demanding applications.
Product Overview
  • Miniature form factor with HD-SDI/AHD video input compatibility
  • COFDM modulation optimized for Military & Emergency Communications
  • Advanced H.265/H.264 encoding technology
  • Low-latency video and audio transmission
  • Robust foundation for high-speed mobile data video transmission

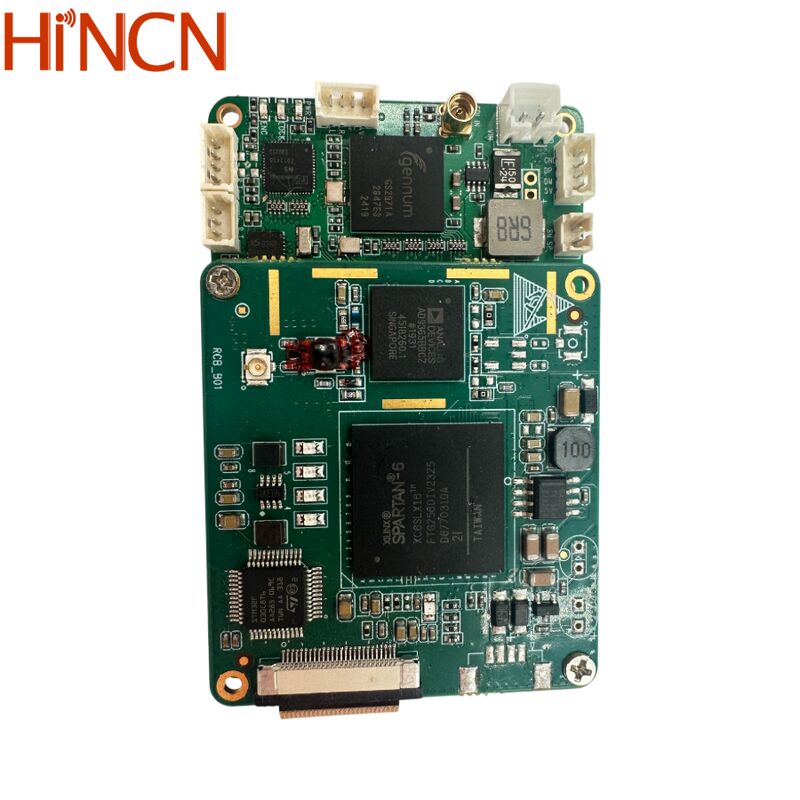

HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter 0
Input/Output Ports
Port Type Connection
HD Video input SDI, MMCX Connector
AHD Video input 4PIN PH1.25mm Connector
TTL data uart 3PIN PH1.25mm Connector
TTL control uart 4PIN PH1.25mm Connector
Power in 2PIN PH2.0mm Connector
RF output IPEX
Technical Specifications
Modulation
Parameter Specification
Modulation COFDM(DVB-T)
Number of Subcarriers 2K
Wireless bandwidth 1MHz~8MHz adjustable, 1KHz step forward
Frequency 160MHz~4GHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Bitrate 0.5Mbps to 31.67Mbps
RF Specifications
Parameter Specification
Frequency bands 200MHz~2300MHz
Tuning step size 1KHz
Power out Configurable from -93dBm to -5dBm (subject to frequency)
Video and Audio Specifications
Parameter Specification
Video input SDI or AHD (AV compatible), auto-detected after system start-up
Video formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, 720*480 60I(NTSC), 720*576 50I(PAL) AHD 720P@25P/30P, AHD 1080P@25P/30P
Video coding H.265
Audio input Embedded SDI or AV audio (Specify Mic in/Line in)
Audio coding AAC, 16 bit, stereo, 32Kbps
Encryption AES256
Additional Specifications
Parameter Specification
Monitoring and control Comprehensive setup with our Config Panel or other device via control UART
Temperature range Full specification: 0° to +70°C Ambient Storage: -40° to +80°C
Dimensions 70*45*13mm (not including connectors out of the board)
Input range 7~24VDC
Power consumption <350mA@12V
Latency H264 low-latency mode: 50ms~150ms H265 normal latency mode: 200ms~250ms
*AHD: Analog High Definition
Functional Modes
The SDI video transmitter and receiver module operates in various functional modes with different firmware configurations.
Default Functions
  • H.265 video compression with COFDM modulation
  • Video input via SDI or AHD interface
  • Full HD resolution support up to 1080p/i @60fps
  • Adjustable working frequency, bandwidth, video stream bitrates, and RF power
The default configuration pairs with our HD5 wireless video receiver module, delivering video delay of approximately 200ms to 250ms.
Special Firmware Options
  • Standard H.264 compression (compatible with HD1/HD4 receivers)
  • Proprietary H.264 compression for ultra-low latency (50ms-150ms)
  • Dual-channel video via SDI + AHD input (requires specified firmware)

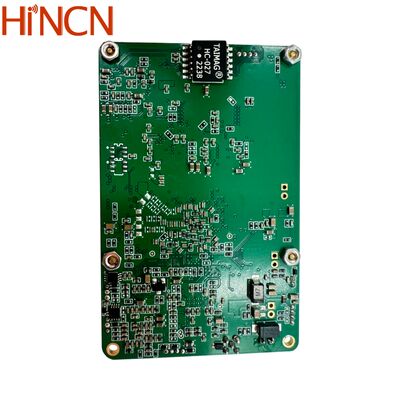

Paired HD5 Wireless Video Receiver Module
HD-SDI AHD Video Transmitter And Receiver Module Cofdm Wireless Video Transmitter 1
For more information about wireless receiver modules, please contact us.
