High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted

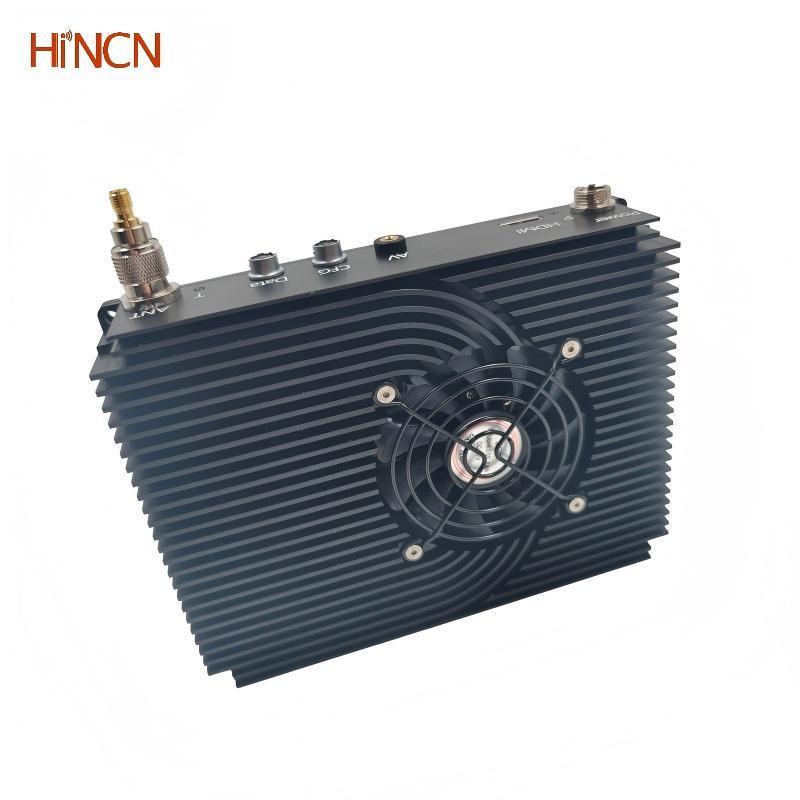

Large Image : High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted

Product Details:

Place of Origin:	China
Brand Name:	Hincn
Model Number:	HCT531

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$1,955~US$2,318
Packaging Details:	carton package
Delivery Time:	7~14 working days
Payment Terms:	,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability:	899 sets/ month

Contact Now Chat Now

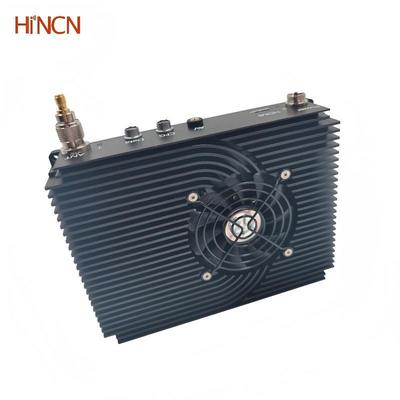

High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted

Description

Wireless Modulation:	COFDM	Transmission Power:	10W(40dBm) Or 20W(43dBm)
Frequency:	160MHz~860MHz Without Downconverter	Encryption:	AES256
Video Input:	AV/ HDMI	OEM/ ODM:	Support
Highlight:	COFDM UAV transmitter with AES256 encryption , High power UAV video transmitter , HDMI input UAV transmitter

High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted

Key Features

COFDM modulation
H.264/H.265 video compression
Full HD resolution, 1080p/i @60fps
Supports two channel videos simultaneously (optional)
AES256 encrypted transmission, military-grade data security
Achieve stable signal transmission under non-line-of-sight and high-speed movement conditions

Product Specifications

Product name	High Power COFDM UAV Transmitter Support AV HDMI Video Input AES256 Encrypted
Model Number	HCT531

Modulation

Wireless modulation	COFDM( DVB-T)
Carriers	2K
Bandwidth	Configurable from 1MHz to 8MHz, step by 1KHz
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
Constellation	QPSK, 16QAM, 64QAM
Bitrates	0.5Mbps to 31.67Mbps

Transmission power	10W(40dBm) or 20W(43dBm)
Frequency	200MHz~860MHz
Tuning Step size	1KHz

Video and Audio

Video input	HDMI or CVBS, auto-detected after system start-up Optional: two channel video input/encoding/transmit at the same time
Video formats	1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720480 60I(NTSC), 720576 50I(PAL)
Video Coding	H.264/ H.265
Audio input	Embedded HDMI or analog audio
Audio Coding	AAC, 16bit, stereo, 32Kbps
Encryption	AES256

Others

Control method	Through our configuration panel, PC or other devices via Control UART, comprehensive transmitter settings can be achieved.
Storage Temperature range	-40° to +80°C
Size	18013638mm
Weight	906g
Input voltage	28V

The HCT531 COFDM UAV transmitter is designed for use with HD or SD cameras, offering superior miniature wireless video transmission for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. Featuring HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding, it delivers complete video and audio transmission in high-speed motion and NLOS (non-line of sight) conditions with low latency.

The HCT531 COFDM UAV transmitter provides up to 10W or 20W of power in a compact metal case weighing less than 910 grams, ensuring long-range, reliable HD video transmission.

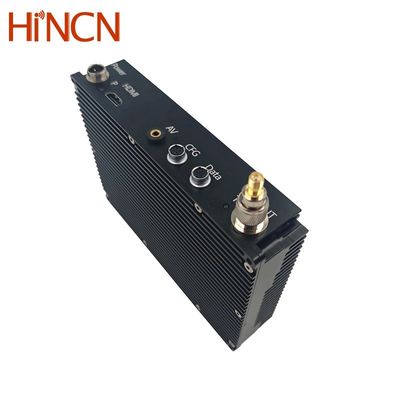

Input/Output Interface

HD Video Input	HDMI Type-A connector
Composite Video Input	3.5mm earphone connector
UART Data	YC8-3 connector, TTL3.3V by default (optional RS232)
TTL UART Control	YC8-4 connector, TTL 3.3V
Power in	GX12-2 connector
RF output	TNC female

COFDM UAV Transmitter Interface Signal

COFDM transmitter interface signal diagram

COFDM transmitter interface signal close-up

Frequently Asked Questions

Q1. Does your 10 watts/20 watts COFDM Wireless video transmitter support changing frequency to be 1.2G/1.4G?

A: The transmitter frequency can be 160MHz~2700MHz, but our COFDM wireless receiver only supports 170~860MHz. For 1.2G or 1.4G, a frequency down converter is required at the receiver end.

Q2. Does this COFDM wireless video transmitter support SDI video input?

A: Yes, our COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.

Q3. What's the max distance for the 10W PA transmitter?

A: For UAV applications, the transmission range is about 100km when the UAV is at approximately 500 meters altitude with receiver antennas positioned as high as possible.
