Airborne IP Ethernet TDD COFDM Video Data Transmitter Long Range Transmission Link

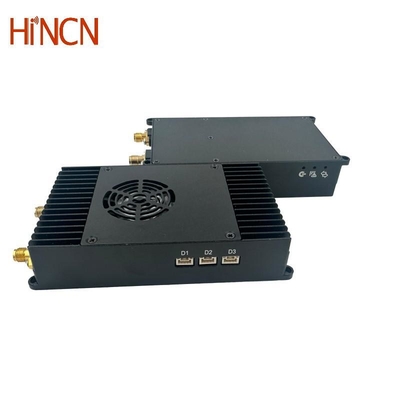

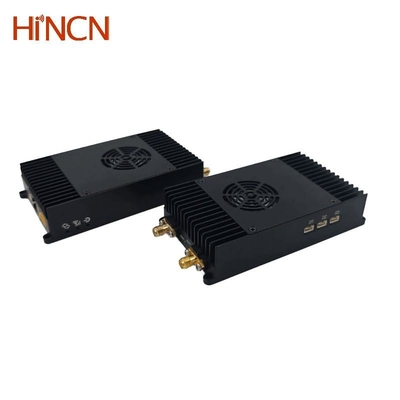

The HCL536 COFDM video data transmitter receiver is specifically designed for wireless transmission of video with two-way wireless data links. It operates in the 800MHz or 1.4GHz frequency bands, employs frequency hopping technology (FHSS) to ensure the stability of signal transmission.

• TDD COFDM wireless video data transmitter for video data link
• Up to 30Mbps Iperf Throughput @20MHz channel

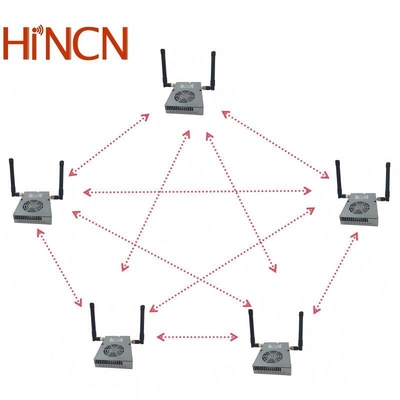

• Supports point to point, point to multipoint networks or Mesh network
• Interface through web browser or control uart
• 2 Ethernet and 3 channel uart for Drone/UAV data link
• 22km~100km long range video data transmission
• Wireless transmitter receiver HCL536 can achieve fully transparent data encryption transmission in emergency security network.

The HCL536 COFDM video data transmitter receiver supports two operating modes: Access Node or Central Node, manageable through web UI. It can connect up to 16 access nodes to a central node within the same wireless local area network, sharing the entire transmission bandwidth (maximum 30Mbps@20MHz throughput).

Data streams are categorized as downlink (Central Node to Access Node) and uplink (Access Node to Central Node), with stream ratio controllable via web UI. In Point-to-Point transmission, both uplink and downlink share the full bandwidth.
