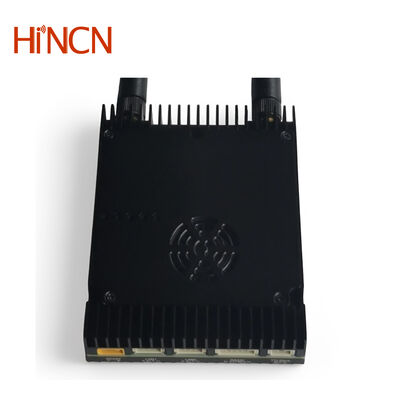

MIMO MANET Mesh Network Radio with HD Video Transmission for UAV and Drone Applications
Hincn Limited provides an advanced MIMO MANET Mesh Network Radio with HD Video Transmission, designed for professional UAV, drone, and unmanned system applications. Combining MIMO wireless technology, MANET self-organizing networking, and high-definition video transmission capability, this next-generation communication system delivers reliable long-range connectivity for UAV operations, drone swarms, and mission-critical applications.
Unlike traditional point-to-point wireless video transmitters, this UAV Mesh Network Radio supports multi-node networking, allowing multiple drones, ground stations, and mobile platforms to create a flexible wireless communication network. The system enables real-time HD video streaming, telemetry data transmission, and remote control communication through a secure and stable wireless link.
MIMO MANET Technology for Long Range Mesh Communication
The integration of MIMO (Multiple Input Multiple Output) technology significantly improves wireless transmission performance by enhancing signal stability, communication capacity, and anti-interference capability. Combined with MANET (Mobile Ad Hoc Network) architecture, the radio system can automatically establish and maintain a dynamic mesh network without requiring fixed communication infrastructure.
Each connected UAV or mobile terminal can operate as a network node, forwarding video and data signals through multiple communication paths. This makes the system ideal for complex environments where traditional communication links may experience coverage limitations.
Key Features:
- MIMO enhanced wireless transmission
- MANET self-forming mesh networking
- Long-range HD video communication
- Multi-UAV network support
- Low latency data and control transmission
- Dynamic routing and network expansion
- Reliable communication in challenging environments
Technical Specifications
| Model Number |
HCL801 |
| Frequency |
634~674MHz, 790~820MHz, 1300~1400MHz, 1350~1450MHz, 1420~1530MHz, 1625~1725MHz, 1660~1710MHz, 1710~1785MHz, 2200~2300MHz, 2400~2500MHz |
| Anti-jamming |
Support, Software-defined radio (SDR) |
| In-band Interference Resistance |
When the proportion of interference received by the HCL801 in-band signal is less than 15%, normal communication and data transmission can be ensured. |
| Bandwidths |
1.25M/2.5M/5M/10M/20MHz bandwidth configurable |
| Throughput |
Maximum 47 Mbps throughput |
| RF Transmission Power |
1W*2 |
| Constellation |
QPSK, 16QAM, 64QAM self adaption |
| Sensitivity |
-104dBm(1Mbps@20MHz) |
| Ethernet Ports |
2 * Ethernet ports for IP data transmission |
| Serial Ports |
Supports serial data transmission: two RS232 UARTs, one TTL 3.3V UART (Sbus optional) |
| Transmission Range |
2~5km (ground-to-ground), 30~60km (UAV-to-ground) |
| Control By |
Web UI and Control Uart |
| Encryption |
AES256 |
| Networking Mode |
Mesh, Point to Point, Point to Multipoint, Relay |
| Movement Speed |
Supported movement speed: the lower the frequency, the greater the supported mobile speed. For frequencies above 1 GHz (such as 1.4 GHz), the supported mobile speed is 800 km/h. The 800 MHz band supports a mobile speed of Mach 1.5. |
| Power Input |
20~28V |
| Power Consumption |
Maximum working power consumption: about 20W; The power consumption when no data is transmitted is around 6W. |
| Dimensions |
98.7*81*23.3mm |
| Weight |
230g |
HD Video Transmission Mesh Radio for UAV Applications
The MIMO MANET Mesh Network Radio is specially designed for UAV platforms requiring simultaneous transmission of video, data, and control signals. With high bandwidth wireless capability, the system supports real-time transmission of high-definition aerial video from drones to ground control stations.
Typical Applications:
- UAV aerial surveillance
- Drone swarm communication
- Target drone systems
- Industrial inspection drones
- Emergency response communication
- Autonomous unmanned vehicles
- Remote monitoring platforms
For drone swarm operations, multiple UAVs equipped with this mesh radio can communicate with each other to share video streams, flight information, and mission data. The decentralized network structure improves operational flexibility and increases communication reliability.
Reliable Wireless Data Link for Drone Swarm Control
Modern UAV missions require stable communication between multiple airborne platforms. Traditional wireless links may lose connection when drones move beyond direct communication range or encounter obstacles. The MANET Mesh Network Radio System provides an intelligent networking solution by supporting multi-hop communication.
Through mesh networking, UAV nodes can automatically relay signals, extending communication coverage and maintaining connectivity during complex flight operations.
System Capabilities:
✓ Real-time drone-to-drone communication
✓ UAV swarm coordination
✓ Ground-to-air wireless networking
✓ Video and telemetry integration
✓ Flexible network deployment
This makes it suitable for professional UAV manufacturers, system integrators, and organizations requiring advanced wireless communication solutions.
Professional OEM/ODM Mesh Radio Manufacturer in China
Hincn Limited specializes in the research, development, and manufacturing of wireless video transmission systems, UAV data links, and MESH communication equipment. As an experienced OEM/ODM supplier in China, Hincn provides customized solutions according to different application requirements.
Customization Services:
- Frequency band configuration
- RF power optimization
- Hardware customization
- Antenna design solutions
- Firmware development
- Network protocol integration
- Mechanical structure customization
From prototype design to mass production, Hincn supports global customers with complete engineering and manufacturing services.
Applications of MIMO MANET Mesh Network Radio
UAV Swarm Communication
Provides reliable networking between multiple drones for coordinated operations.
Drone Video Data Link
Enables long-distance HD video transmission for professional UAV platforms.
Emergency Communication
Creates rapidly deployable wireless networks in remote or disaster areas.
Security and Surveillance
Supports mobile video monitoring and real-time communication.
Robotics and Unmanned Systems
Provides wireless connectivity for autonomous vehicles and robotic platforms.
Why Choose Hincn MIMO MANET Mesh Network Radio?
Hincn Limited focuses on advanced wireless communication technologies and provides professional solutions for global UAV and industrial customers.
Main Advantages:
- Advanced MIMO wireless technology
- MANET mesh networking capability
- HD video transmission support
- Long-range communication performance
- Low-latency data link design
- OEM/ODM customization capability
- Professional UAV communication R&D team
Conclusion
The MIMO MANET Mesh Network Radio with HD Video Transmission for UAV and Drone Applications is a powerful wireless communication solution for modern unmanned systems. By combining MIMO technology, MANET mesh networking, and real-time HD video transmission, it provides a reliable communication platform for UAV swarms, drones, robotics, and professional industrial applications.
Hincn Limited continues to develop advanced UAV mesh communication systems, wireless video data links, and customized OEM/ODM solutions to support customers worldwide seeking high-performance wireless connectivity.
