Tactical Manpack COFDM HD Wireless Video Transmitter And Receiver For Emergency Situations

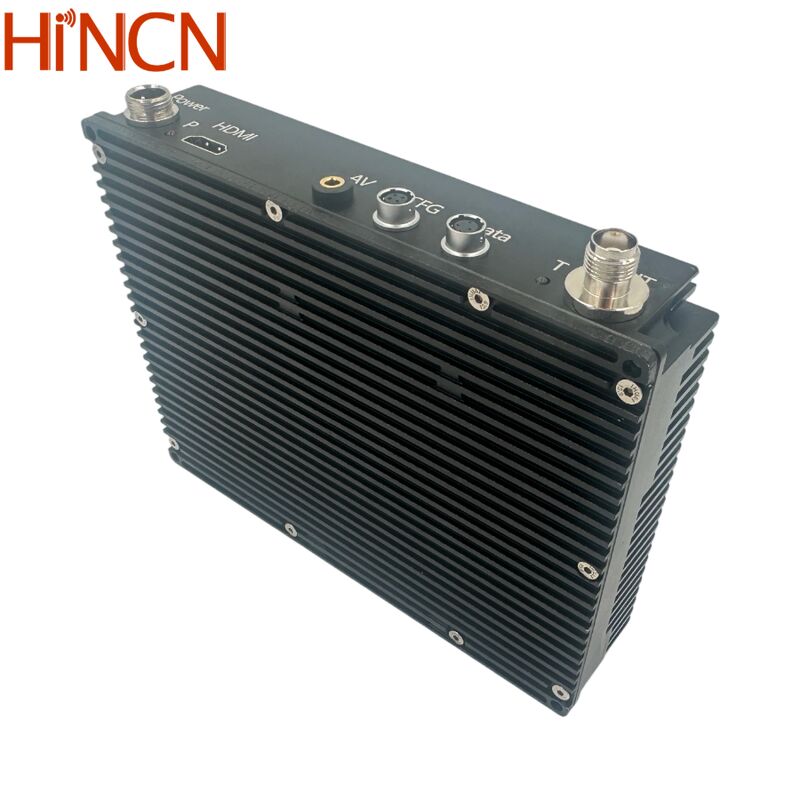

Large Image : Tactical Manpack COFDM HD Wireless Video Transmitter And Receiver For Emergency Situations

Product Details:

Place of Origin:	China
Brand Name:	Hincn
Model Number:	HCT531+HCR800

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	US$2,839~US$3,119
Packaging Details:	carton package
Delivery Time:	7~14 working days
Payment Terms:	,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability:	1,899 sets/ month

Contact Now Chat Now

Tactical Manpack COFDM HD Wireless Video Transmitter And Receiver For Emergency Situations

Description

Wireless Modulation:	COFDM	Encode:	H.264/ H.265
Encryption:	AES256	Video Input:	AV/ HDMI/SDI
Bitrates:	0.5Mbps To 31.67Mbps	OEM/ ODM:	Support
RF Power:	10W/20W, More Can Be Customized	Bandwidth:	Configurable From 1MHz To 8MHz, Step By 1KHz
Input Voltage:	28V
Highlight:	Tactical COFDM wireless transmitter , HD video transmitter for emergencies , Manpack wireless video receiver

Tactical Manpack COFDM HD Wireless Video Transmitter and Receiver

This COFDM HD wireless video transmitter is specifically designed for use with HD or SD cameras. It is a high-performance miniature wireless video transmitter that captures real-time, high-quality HD video from various devices including perspective cameras, unmanned aerial vehicles, ground vehicles, body cameras, hidden devices, and mobile cameras.

Key Features

COFDM technology with strong interference resistance
Support for H.264/H.265 video compression
Full HD resolution, 1080p/i @60fps
Simultaneous support for two channels of video inputs
AES256 encryption transmission with military-grade data security
Support for high-speed mobile and NLOS long range HD wireless video transmission

Technical Specifications

Product Information

Product Name	Tactical Manpack COFDM HD Wireless Video Transmitter and Receiver for Emergency Situations
Model Number	HCT531

Modulation Specifications

Wireless Modulation	COFDM (DVB-T)
Carriers	2K
Bandwidth	Configurable from 1MHz to 8MHz, step by 1KHz
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
Constellation	QPSK, 16QAM, 64QAM
Bitrates	0.5Mbps to 31.67Mbps

RF Specifications

Transmission Power	10W (40dBm) or 20W (43dBm)
Frequency	200MHz~860MHz
Tuning Step Size	1KHz

Video and Audio Specifications

Video Input	HDMI or CVBS, auto-detected after system start-up. Optional: two channel video input/encoding/transmit simultaneously
Video Formats	1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, 720480 60I (NTSC), 720576 50I (PAL)
Video Coding	H.264/H.265
Audio Input	Embedded HDMI or analog audio
Audio Coding	AAC, 16bit, stereo, 32Kbps
Encryption	AES256

Additional Specifications

Control Method	Through configuration panel, PC or other devices via Control UART, comprehensive transmitter settings can be achieved
Storage Temperature Range	-40° to +80°C
Size	18013638mm
Weight	906g
Input Voltage	28V

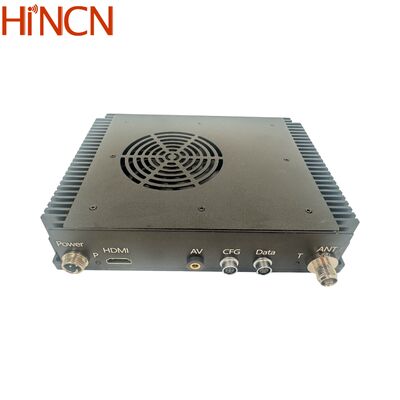

Input/Output Interface

HD Video Input	HDMI Type-A connector
Composite Video Input	3.5mm earphone connector
UART Data	YC8-3 connector, TTL3.3V by default (optional RS232)
TTL UART Control	YC8-4 connector, TTL 3.3V
Power In	GX12-2 connector
RF Output	TNC female

Paired COFDM Video Receiver
