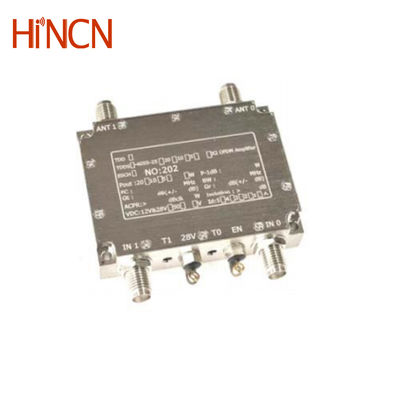

TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA

TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA
TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA

Large Image :  TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCTD-4055-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: US$579.00~US$629.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 359pcs/month
Contact Now Chat Now

TDD 2*2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA

Description
Power: 2*2W Frequency: 1420~1530MHz Or Other Frequencies
Size: 40*55*12mm Power Supply Voltage: 10~16V
Material: Made Of Pure Aluminum RF Connector: SMA Or MCX
Highlight:

2x2W dual channel RF power amplifier

,

MIMO linear RF amplifier 1420-1530MHz

,

digital RF power amplifier with warranty

TDD 2×2W Dual Channel Digital Linear RF Power Amplifier 1420～1530M MIMO PA
A compact, high-performance dual-channel power amplifier (MIMO-PA) offering exceptional linearity and reliability, with built-in protection against open/short circuit damage.
Key Features
  • Extremely compact dual-channel design (MIMO-PA)
  • High linearity performance
  • Robust protection: No damage during open/short circuit conditions
  • Temperature protection (auto shutdown at 105±5°C)
  • Flexible control options (TTL or automatic power detection)
Technical Specifications
Model Number HCTD-4055-2
Frequency Range 1420~1530MHz (other frequencies available)
Transmission Power 2W nominal per channel (2-3W typical)
Gain (TX Mode) ≥12dB±0.5dB
Shoulder Ratio ≥25~30dB (8MHz bandwidth, DVB-T, 2/8K mode)
In-band Fluctuations ≤±1.25dB (typically ±0.75dB)
Input/Output Interface SMA or MCX
Third Order Intermodulation ≤-30~36dB@Pout=33dBm/≤-20~30dB@36dBm
Harmonic Suppression ≤-30dBc
Output VSWR ≤1.5 (50Ω load)
Relative Group Delay ≤20ns
RF Switch Timing Turn on ≤1μs / Turn off ≤0.2μs
TX/RX Isolation ≥45dB
Receive Gain (RX Mode) 9±2dB×2 or 2dB±0.5dB×2 (configurable up to 20dB)
Control Mode TTL 0/1.8~5V level or automatic power detection
Operating Temperature -25~+85°C
Supply Voltage 12V (10-16V range, higher voltage improves output)
Working Current 1.25~2.1A ×2 @ 2W ×2
Dimensions (with housing) 40×55×12mm

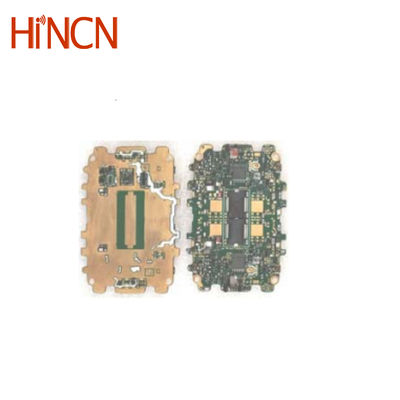

Weight 54g (with housing), 10g (bare board)
Performance Notes
  • Higher supply voltage improves output performance
  • Automatic transmission/reception mode slightly increases transmission delay
  • Low-noise amplifier static current <0.17A in receiving mode
