Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems

• TDD COFDM video transmitter and receiver module for video data Link
• RF Power: 25±2dBm+ external RF power amplifier
• Working Frequency: 806~826HMz, 1428~1468MHz, 2402~2482MHz
• Transparent IP Ethernet (2* Ethernet ports) and serial data(3* TTL/RS232 uart) sync telecommunication
• Audio input and output with codec
• Transmission range 5km~150km (UAV-to-ground) with/ without external RF power amplifier, can achieve wireless video data transmission at different levels of distance.
• Great transfer rate for uplink and downlink

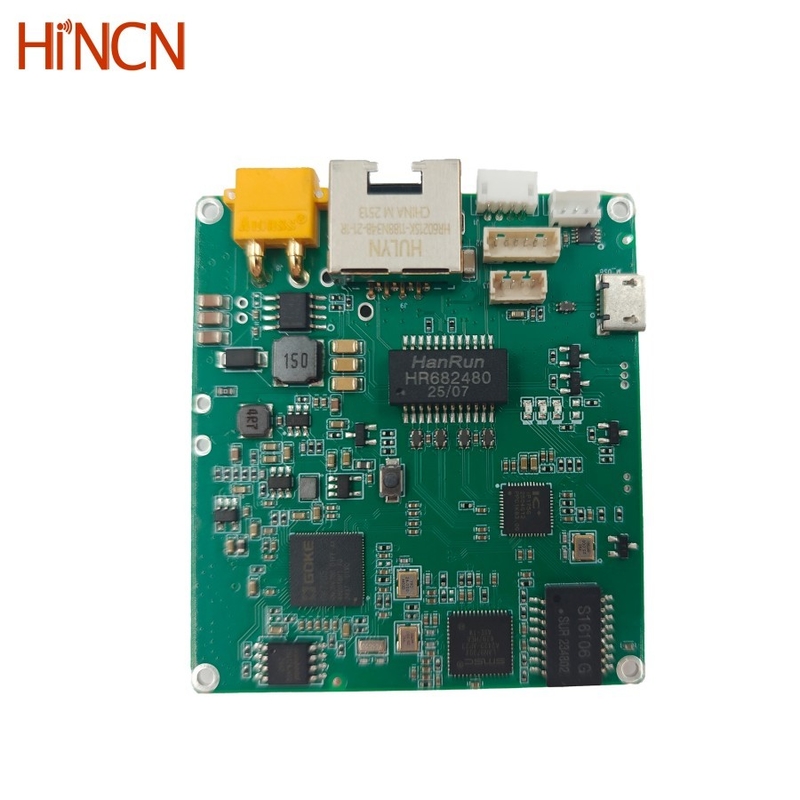

HCL5-M video data transmitter and receiver module was designed for wireless HD video transmission with dual wireless data links. This module works at 800MHz, 1.4GHz and 2.4GHz bands, the stability of signal transmission is ensured through the frequency hopping (FHSS) technology.

The video data transmitter and receiver module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. The module supports up to 16 Access Nodes connected to a Central Node, all sharing the maximum 30Mbps@20MHz throughput bandwidth. Uplink and downlink stream ratio can be controlled through web UI or AT command.
