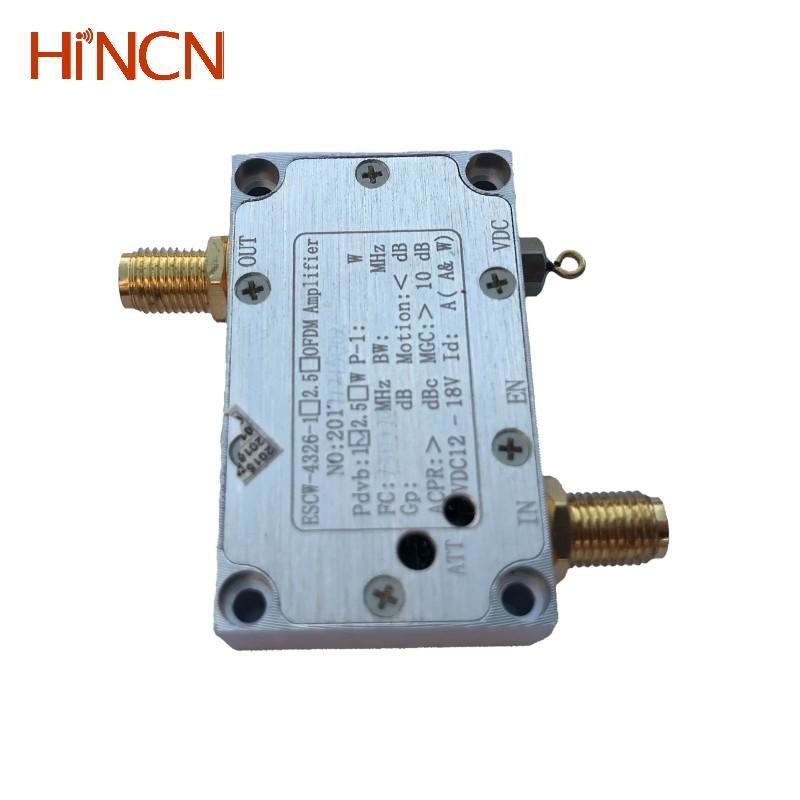

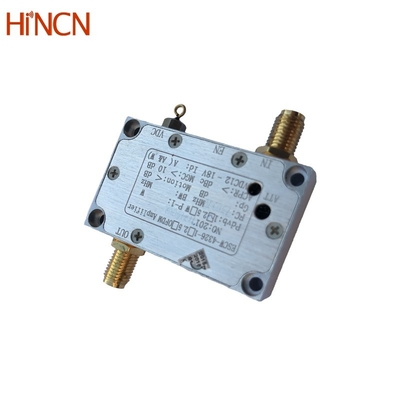

COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM

COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM
COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM

Large Image :  COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCP1-4326
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: US$268.00~US$298.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 300pcs/month
Contact Now Chat Now

COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM

Description
Output Power: 1W/ 2.5W Frequency: 160MHz~2700MHz
Size: 43*26*12mm Power Supply Voltage: 12 To 18V
Material: Made Of Pure Aluminum RF Connector: SMA Or MCX
Highlight:

COFDM microwave power amplifier

,

2.5W microwave power amplifier

,

ODM 2.4 ghz rf amplifier

COFDM Liner PA 1W 2.5W RF Power Amplifier For Wireless Video Transmitter
Product Specifications
Attribute Value
Output power 1W/ 2.5W
Frequency 160MHz~2700MHz
Size 43*26*12mm
Power supply voltage 12 to 18V
Material Pure aluminum
RF connector SMA or MCX
Key Features
  • Does not interfere with GPS signals
  • High linearity and reliability - open circuit and short circuit protection
  • Surface brushed finish or frosted texture with natural conductive oxidation
  • Pure aluminum construction for excellent heat dissipation
  • Wide voltage range (12-18V) ideal for professional aerial photography transmitters
  • Compact dimensions: 43×26×12mm (Bare board: 35×18×5mm)
  • Available with SMA or MCX RF connectors
  • MCX version features low-profile design with only 7mm protrusion
  • High gain (>43dB) for connecting with modulators having weak output signals
  • High output power with shoulder ratio >36dB (typical 38~41dBc)
  • Secure mounting with 4 recessed 2.5mm through-hole fixing points
Technical Specifications
Parameter Specification
Frequency 570~580MHz (other frequencies available)
Output Power ≥1 W
Shoulder Ratio ≥36 dBc&1W (typical: 38~42dBc)
Gain >43 dB (typical: 45/49 dB)
In-band Group Delay ≤50ns
In-band fluctuations ≤0.5 dB (typical ≤0.25 dB)
Power supply +12V～+18V Vdc
Working current 0.6～0.8A@12.5V
Working temperature -25～+55℃
Storage temperature -45～+65℃
Size 43*26*12mm
RF connector MCX or SMA
Product Drawing
COFDM Liner PA RF Microwave Power Amplifier 1W 2.5W 2.4 ghz ODM 0
Frequently Asked Questions
Q1. Can you make the RF Power Amplifier to be other frequencies? Output 2W,5W and more?
Yes, we can customize the Power Amplifier for other frequencies. The frequency range is from F0±15MHz (e.g., for 450MHz center frequency, range would be 435~465MHz). We offer various power amplifiers with outputs from 1W up to 50W.
