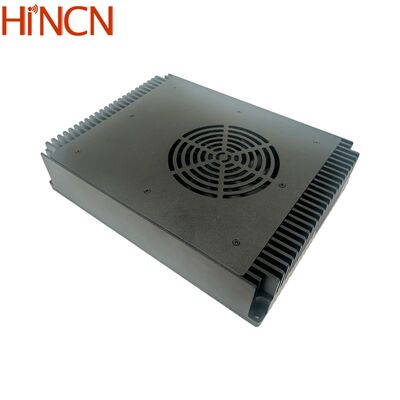

Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256

Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256
Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256 Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256

Large Image :  Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCT531
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: US$1,955~US$2,999
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 1,997 sets/ month
Contact Now Chat Now

Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256

Description
Wireless Modulation: COFDM Transmission Power: 10W(40dBm) Or 20W(43dBm)
Frequency: 160MHz~2700MHz Encryption: AES256
Size: 180*136*38mm Bandwidth: 1MHz~8MHz
Encoding: H.264/H.265 Hd Interface: HDMI Or HD-SDI
Highlight:

Military COFDM wireless video transmitter

,

COFDM receiver with AES256 encryption

,

Military-grade wireless signal transmission system

Military COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256
This military-grade COFDM wireless signal transmitter delivers high-power, long-range wireless video transmission. Built on COFDM modulation technology with H.264/H.265 compression and AES256 encryption, it ensures stable, reliable, real-time HD video transmission even in challenging environments with high-speed movement and urban building occlusion.
Key Features
  • COFDM modulation and H.264/H.265 video compression
  • Full HD resolution, 1080p/i @60fps
  • Supports two channel videos simultaneously (optional)
  • AES256 encryption for enhanced security
  • Modular design with high integration
  • Stable signal transfer in NLOS and high-speed motion conditions
  • Adjustable working frequency, bandwidth, bitrates, and RF power
Product Specifications
Product Name Military COFDM Wireless Signal Transmitter and Receiver Video Systems with AES256
Wireless Modulation COFDM
Transmission Power 10W (40dBm) or 20W (43dBm)
Frequency 160MHz~2700MHz
Encryption AES256
Size 180*136*38mm
Bandwidth 1MHz~8MHz
Product Overview
Designed for use with HD or SD cameras, this military COFDM wireless signal transmitter provides superior miniature wireless video transmission for Point of View Cameras, UAV/UGV/Body Cams/Concealments, and sports cameras. Featuring HDMI or AV inputs with COFDM modulation technology and H.264/H.265 encoding, it delivers complete video and audio transmission in high-speed motion and NLOS (non-line of sight) conditions with low latency.
The HCT531 military COFDM wireless signal transmitter provides up to 10W or 20W of power in a compact metal case weighing less than 910 grams, ensuring long-range, reliable HD video transmission.
Technical Specifications
HD Video Input HDMI Type-A connector
Composite Video Input 3.5mm earphone connector
UART Data YC8-3 connector, TTL3.3V by default (optional RS232)
TTL UART Control YC8-4 connector, TTL 3.3V
Power Input GX12-2 connector
RF Output TNC female

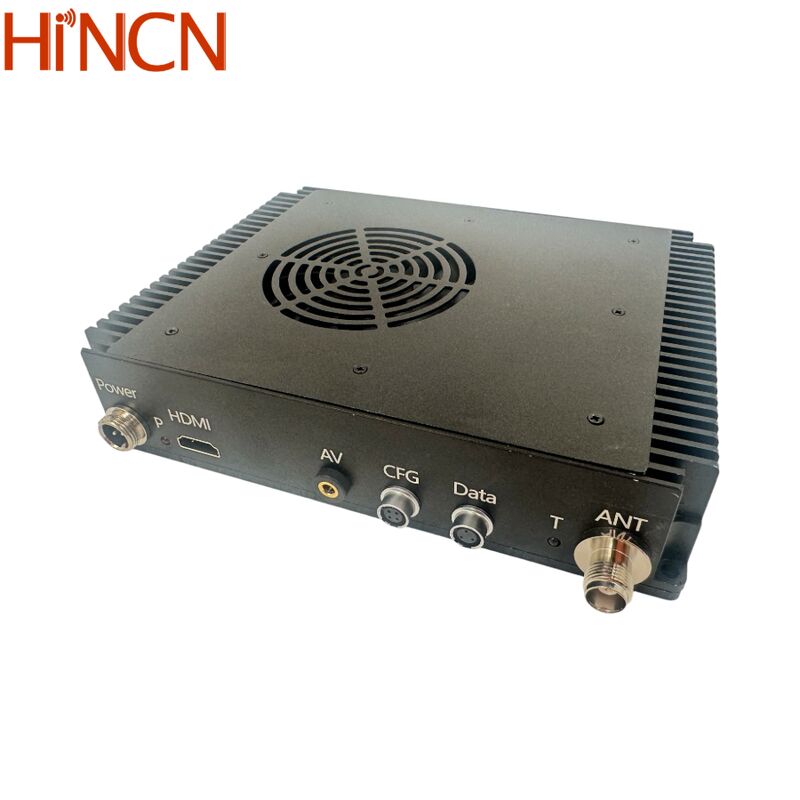

Military COFDM Wireless Signal Transmitter Interfaces
Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256 0
Paired COFDM Video Receiver
Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256 1
Military COFDM Wireless Signal Transmitter And Receiver Video Systems With AES256 2
Frequently Asked Questions
Does this military COFDM wireless signal transmitter support SDI video input?
Yes, our COFDM wireless video transmitters support HDMI, SDI, CVBS AV, IP Ethernet RJ45 and AHD video input.
What's the max distance for the 10W PA transmitter?
For UAV applications, the transmission range is about 100km when the UAV is at approximately 500 meters altitude with receiver antennas positioned as high as possible.
