Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver

Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver
Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver

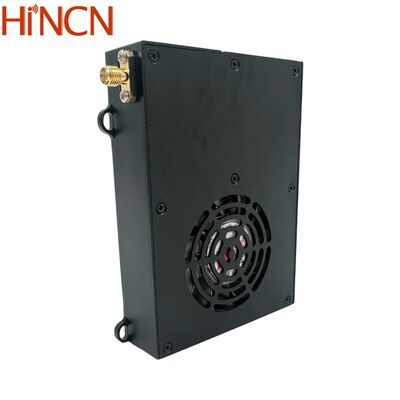

Large Image :  Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver

Product Details:
Place of Origin: China
Brand Name: Hincn Limited
Model Number: HCL615
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$1,499~3,269
Packaging Details: carton package
Delivery Time: 5~8 working days
Payment Terms: ,L/C,D/P,D/A,T/T,Western Union
Supply Ability: 1,986 sets
Contact Now Chat Now

Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver

Description
Video Input: Ethernet/HDMI/SDI/AHD/AV Dc Input: 12~18V(2W*2), 24~32V(5W*2)
Transmit Distance: Up To 100KM Modulation: TDD OFDM
Bandwidths: 3MHz,5MHz,10MHz,20MHz,40MHz OEM/ODM: Support
Highlight:

Mesh Network wireless transceiver

,

MANET radio video transceiver

,

UAV wireless data transceiver

Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver
Advanced MANET Radio for Reliable Mobile Connectivity
The HCL615 is an advanced, scalable, and efficient Mobile Ad Hoc Networking (MANET) radio that provides ultra-reliable connectivity for UAVs and unmanned systems. This technology enables the creation of secure self-forming and self-healing networks anywhere, delivering longer transmission range and higher throughput in both line-of-sight and non-line-of-sight environments.
Every HCL615 MANET radio on a MESH network communicates with each other, forming a true peer-to-peer mobile network. The system can be easily installed on various unmanned system platforms and directly connected to monitors, input devices, and sensors through multi-functional I/O ports, creating a convenient Ground Control Station (GCS) or data processing and distribution unit in the field.
Technical Specifications
Model Number HCL615
Product Name Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver
Modulation TDD OFDM
Frequency 566~678MHz or 1420~1530MHz
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps throughput
RF Transmission Power 2W*2 or 5W*2
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Ethernet Ports 2 * Ethernet ports for IP data transmission
Serial Ports 2 channel TTL for serial data transmission (TTL 3.3V uart as default, RS232 optional)
Transmission Range 2~7km (ground-to-ground), 30~100km (UAV-to-ground, optional range level)
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 240km/h
Power Input 12~18V(2W*2), 24~32V(5W*2)
Power Consumption 2W*2: <2A@12.8V (access node) and <1.2A@12V (central node)
5W*2: <1.6A@28V (access node) and <0.9A@28V (central node)
Dimensions 113.9*83.7*24.5mm
Weight 256g
I/O Ports Configuration

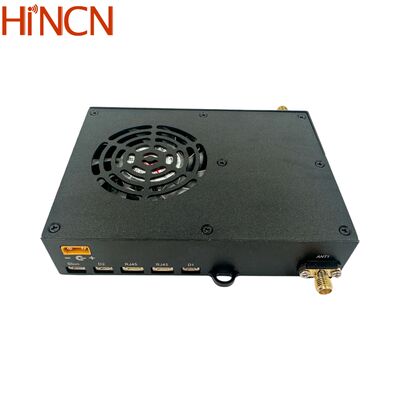

Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver 0
I/O Port Description
Ethernet*2 2 channel 4Pin GH1.25mm lockable connector, bridged inside with same IP address
Uart1 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement
Uart2 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. It can be set as control uart via web UI
Sbus 3Pin GH1.25mm lockable connector. Sbus-in and Sbus-out
Power in XT30PW-M connector
ANT1 Tx/Rx Antenna port, SMA female
ANT2 Tx/Rx Antenna port, SMA female
Supported Video Input
IP camera video can be connected with HCL615 MANET radio directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE11/S11 encoder device and then work with HCL615 via Ethernet connection.
Mesh Network Mobile Ad Hoc Networking MANET Radio Video Data Wireless Transceiver 1
About Hincn Limited
Hincn Limited is a Hong Kong company specializing in HD video wireless communication solutions, founded in 2018. Our research and production center is located in Shenzhen and was established in 2015. We employ a total of 8 professionals, including 3 programmers and 2 engineers. Our company maintains long-term cooperative relationships with ADI, Xilinx, Altera and Morningcore, serving as a third-party design partner for both ADI and Morningcore.
