300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission

300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission
300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission
300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission 300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission 300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission

Large Image :  300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HNC2-20W
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$665.00~US$775.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 679pcs/month
Contact Now Chat Now

300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission

Description
Modulation: QPSK Modulation LDPC Coding RF Power: 20W(43dBm)
Bandwidths: 1MHz/500kHz/250kHz/125kHz High Sensitivity: -114dBm@125kHz
Number Of Nodes: Maximum 1024 Nodes Transmission Range: Up To 300km
Highlight:

300km long range UAV data link

,

anti-jamming mesh radio network

,

serial data transmission mesh radio

300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission
The HNC2-20W Mesh Radio Network provides long-range, high-capacity wireless communication for UAV systems with anti-jamming capabilities and serial data transmission support.
Key Specifications
Model Number HNC2-20W
Modulation QPSK modulation LDPC coding
RF Power 20W(43dBm)
Bandwidths 1MHz/500kHz/250kHz/125kHz
High sensitivity -114dBm@125kHz
Number of serial data ports 2
Wireless transmission delay Minimum 2ms
Number of nodes Maximum 1024 nodes
Key Features
  • Wireless link rate up to 735kbps
  • Supports point-to-point, point-to-multipoint, multipoint-to-point and Mesh network topologies
  • Maximum mesh network capacity of 1024 nodes
  • High sensitivity level of -114 dBm at 125kHz data rate
  • Frequency hopping spread spectrum (FHSS) support
  • Air-to-ground LOS distance: ≥300km, ground-to-ground LOS range 3-10km
  • Dual serial ports support (TTL/RS232/RS422 optional)
Mesh Radio Network Overview
The HNC2 self-organizing Mesh radio network enables centerless long-range communication among a large number of nodes. Each node can communicate independently without interfering with others.
Supporting large-scale dense node access to wireless transmission, dynamic networking construction, and flexible reorganization. The data link system supports full-multiplexing communication where nodes can simultaneously send and receive data from all other nodes without causing interference.
HNC2 20W Mesh Radio Network Models
Model RF Power Network Scale Frequency Bands
HNC2-H400-20W 20W Max. 1024 nodes, up to 16 hops 430-450MHz
HNC2-H800-20W 20W Max. 1024 nodes, up to 16 hops 820-854MHz
HNC2-H900-20W 20W Max. 1024 nodes, up to 16 hops 900-940MHz
HNC2-F400-20W 20W Max. 256 nodes, up to 3 hops 430-450MHz
HNC2-F800-20W 20W Max. 256 nodes, up to 3 hops 820-854MHz
HNC2-F900-20W 20W Max. 256 nodes, up to 3 hops 900-940MHz
Technical Specifications
Product name 300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission
Frequency Varies by model (see above table)
Bandwidths 1MHz/500kHz/250kHz/125kHz selectable
Number of nodes and hops Maximum 1024 nodes up to 16 hops or 256 nodes up to 3 hops
Frequency hopping speed 1MHz: Over 1800 times/sec
500kHz: Over 900 times/sec
250kHz: Over 450 times/sec
125kHz: Over 225 times/sec
Effective data rate 1MHz: Up to 735kbps
500kHz: Up to 370kbps
250kHz: Up to 185kbps
125kHz: Up to 92kbps
Full-multiplexing communication Supported
Air-to-ground LOS distance ≥300km
Centerless self-organized network Supported - network remains functional if any node is destroyed
Network construction time Within 1 second
Wireless transmission delay Minimum 2ms
Dynamic topology Supports node joining/leaving and topology changes without disruption
RF power 20W(43dBm)
Sensitivity 125kHz: -114dBm
250kHz: -111dBm
500kHz: -108dBm
1MHz: -105dBm
Frequency stability ≤1ppm
Modulation QPSK modulation LDPC coding
Encryption 128-bit encryption
Low power consumption Less than 1.5W(0.06A/24V) when receiving
Transmission power varies by data rate from 2.4W to 32W
Operating voltage 24V default, supports 7-36V wide voltage input
Operating temperature -40 to +55°C
Dimensions 83.8 × 53 × 16mm
Weight 91.3g
Input/Output
I/O Description
Power-in Power-input, XT30PW-M connector
Dip-switch Dial switch for configuration mode/transparent transmission mode
Uart 1 Configure/transparent data serial port 1 (TTL 3.3V default, optional RS232/RS422)
Uart 2 Transparent data serial port 2 (TTL 3.3V default, optional RS232/RS422)
ANT SMA female antenna port (50Ω impedance required)
PWR-LED Red power status indicator (continuous light when power is normal)
RX-LED Green data receiving indicator (lights when receiving data)
TX-LED Green data transmitting indicator (lights when transmitting data)
CA-LED Blue interference indicator (brightness indicates interference strength)

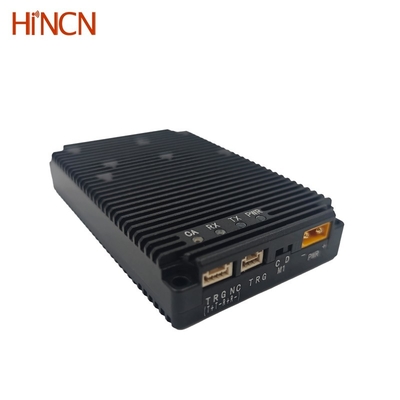

300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission 0
HNC2 Mesh Radio Network Device

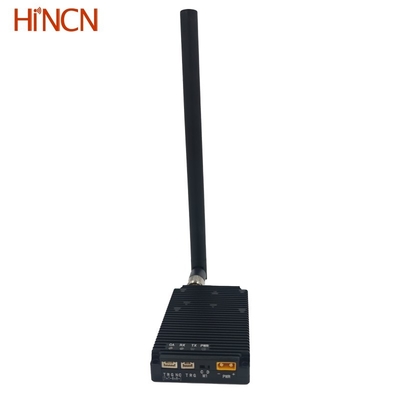

300km Anti-Jamming Mesh Radio Network Long Range UAV Data Link With Serial Data Transmission 1
HNC2 Mesh Radio Network Components
Mesh Radio Network Operating Modes
The radio supports two operating modes controlled by the dip switch:
  • Configuration Mode: Uart1 only responds to configuration commands (fixed at 9600 baud, 8 data bits, 1 stop bit, no parity). Only local parameter modifications are possible.
  • Transparent Transmission Mode: Uart1 handles both configuration packets and transparent data transmission. Supports both local and remote parameter configuration.
