Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web

Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web

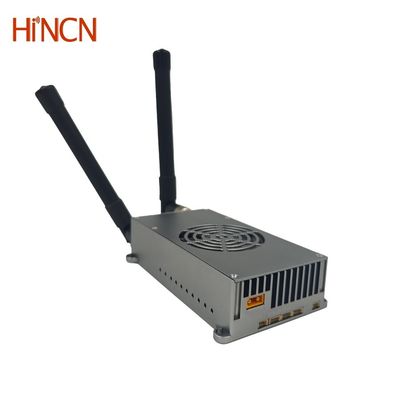

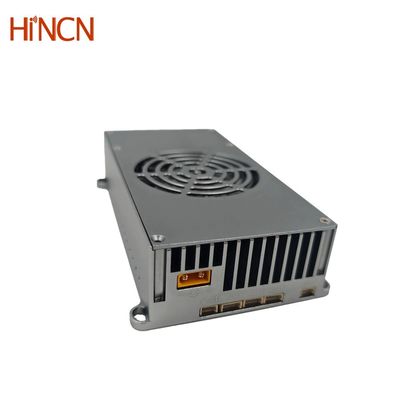

Large Image :  Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL602- 2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$1,669~US$1,829
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 779pcs/month
Contact Now Chat Now

Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web

Description
Frequency: 566~678MHz Or 1420~1530MHz RF Power: 2W *2( Each 2W Of The 2 Antennas)
Bandwidth: 1.4/ 3/ 5/ 10/ 20/ 40MHz Encryption: AES128
Control By: Web UI Or Control UART OEM/ ODM: Support
Highlight:

wireless video transmitter mesh network

,

mesh network radio serial data

,

web controlled wireless video transmitter

Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web
Key Features
  • TDD COFDM wireless video transmitter suitable for UAV video data Link
  • Up to 100Mbps Iperf Throughput
  • Supports Mesh Networks
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL for serial data transmission
  • Long distance wireless video data transmission with 2W*2 RF power amplifier
  • Automatic control of uplink and downlink data streams
Overview
Hincn HCL602 Mesh networks radio was designed for video data wireless transmission with dual wireless data link. It works at 600MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to ensure stable signal communication.
Technical Specifications
Product name Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web
Modulation TDD OFDM/COFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 2W *2 (Each 2W of the 2 antennas)
Constellation QPSK, 16QAM, 64QAM, self-adaption
Sensitivity -102dBm (1Mbps at 20MHz)
IP data transmission (3 Ethernet port) Support
Serial data transmission (1 channel RS232 or TTL) Support
Transmission range 1~7km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 12~18V
Power consumption <2A at 12V
Dimensions 118.4*61.4*29 mm
Weight 235g
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web 0 Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web 1
Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Wireless Networking Capabilities
This HCL602 2W Mesh networks radio supports mesh network with maximum 32 nodes and shared maximum 100Mbps Iperf Throughput.
  • Mesh network capacity: supports a maximum of 32 Nodes (2≤N≤32)
  • Transport: unicast, multicast, and broadcast are supported
  • Time synchronization: self-synchronization without external clock
  • Power control: adaptive transmission power adjustment
  • Topology: supports multi-hop routing with maximum 32 nodes and 31 hop routing
  • Routing: automatic routing adjustment with fixed route configuration option
  • Data rate level: adaptive average distribution system rate
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web 2
Product Diagram
Wireless Video Transmitter Support Mesh Networks Serial Data Transmission Control By Web 3
Frequently Asked Questions
Q: Does this Mesh networks radio support any other cameras except IP camera?
A: IP camera video can be connected with HCL602 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL602 via Ethernet connection.
