100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link

100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link
100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link
100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link 100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link 100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link

Large Image :  100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL605- 5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: US$2,255~US$4,287
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 399pcs/month
Contact Now Chat Now

100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link

Description
Frequency: 566~678MHz And 1420~1530MHz RF Power: 5W *2( Each 5W Of The 2 Antennas)
Sensitivity: -102dBm(1Mbps At 20MHz) Network Mode: Mesh
Management: Trough Web UI Or Control Uart Air-to-ground LOS(light Of Sight) Distance: Up To 100km
Highlight:

100km range mesh network radio

,

broadband anti-jamming UAV data link

,

FHSS mesh networking radio

100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link

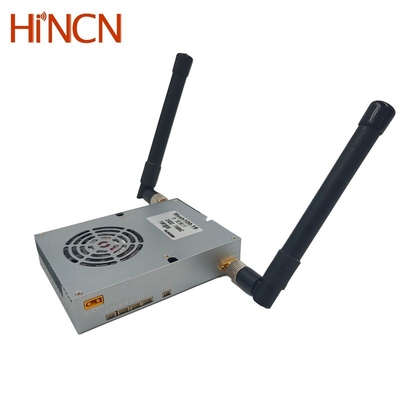

The HCL605 Mesh networking radio is a device specifically designed for long range video data wireless transmission. It operates in the 600MHz or 1.4GHz frequency bands and employs frequency hopping spread spectrum technology (FHSS) to ensure higher stability of UAV signal communication.
Key Features
  • TDD COFDM wireless transceiver for UAV drone video data Link
  • Up to 100Mbps Iperf Throughput
  • Supports Mesh Networking
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL serial data transmission
  • Long distance wireless video data RF transmission with 5W*2 RF power amplifier
  • Uplink and downlink stream automatic control
Technical Specifications
Attribute Value
Name 100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link
Modulation TDD OFDM/ COFDM
Frequency 566~678MHz and 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 5W *2 (Each 5W of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet port
Serial data transmission 1 channel RS232 or TTL
Transmission range 2~10km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <2A at 12V
Dimensions 113.9*83.7*23.3 mm
Weight 243g
100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link 0
Input/Output
Port Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female

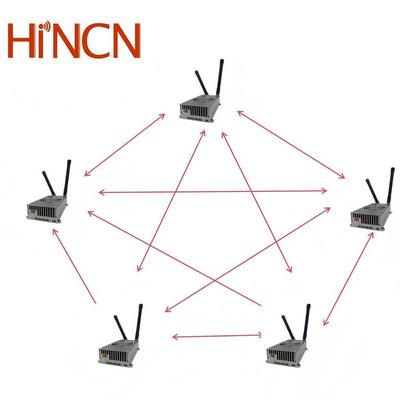

Wireless Mesh Networking with HCL605-5W
  • Mesh networking capacity: Up to 32 nodes (N2 ≤ N ≤ 32)
  • Transmission: Supports unicast, multicast and broadcast functions
  • Time synchronization: can be self-synchronized independently without the need for an external clock
  • Power control: all nodes will adaptively adjust the transmission power
  • Topology structure: Supports multi-hop routing topology with up to 32 nodes and 31 hops
  • Routing: automatically adjusts the route, and can also permanently configure a fixed route
  • Data rate level: uses adaptive average allocation of system rate
  • Transmission delay: Detailed delay calculations provided for various network configurations
  • Startup time delay: Network establishment delay of 20-80 seconds for logical main control node
100km Range Broadband Anti-jamming Mesh Networking Radio FHSS UAV Video Data Link 1
FAQ
Q1. Does this Mesh networking radio support any other cameras except IP camera?
IP camera video can be connected with HCL605 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL605 via Ethernet connection.
