100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter

100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter
100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter 100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter

Large Image :  100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL602- 5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US$2,199~US$2,499
Packaging Details: Canned and packaged in cardboard boxes
Delivery Time: 7~14 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 788pcs/month
Contact Now Chat Now

100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter

Description
Frequency: 566~678MHz Or 1420~1530MHz Bandwidth: 1.4/ 3/ 5/ 10/ 20/ 40MHz
Encryption: AES128 Range: Maximum 100km (UAV To Ground)
Support Nodes: 16 Nodes Throughput: Maximum 50Mbps
Highlight:

100km UAV video data link

,

long range mesh radio transmitter

,

anti-jamming video data link

100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter
100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter
Key Features
  • TDD OFDM full duplex wireless transceiver suitable for UAV UAS video data Link
  • Up to 50Mbps Iperf Throughput
  • Supports Mesh Networks
  • Control by web browser or control UART
  • 3 Ethernet and 1 channel RS232/TTL for data link
  • Long distance wireless video data transmission with 5W RF power
Overview

Hincn HCL602-5 UAV video data link was designed for video data wireless transmission with two-way wireless data link. It works at 600MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to ensure stable signal communication.

Technical Specifications
Model number HCL602-5
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 1.4/3/5/10/20/40MHz
Throughput Maximum 50Mbps
RF transmission Power 5W
Constellation QPSK, 16QAM, 64QAM, self-adaption
Sensitivity -102dBm (1Mbps at 20MHz)
IP data transmission (3 Ethernet port) Support
Serial data transmission (1 channel RS232 or TTL) Support
Transmission range 1~7km (ground to ground), maximum 100km (UAV to ground)
Management Through Web UI or Control UART
Encryption AES128-bit encryption
Network mode Mesh
Movement speed Support maximum 300km/h
Power input 24~30V
Power consumption <1.5A at 12V
Dimensions 118.4*61.4*29 mm
Weight 235g

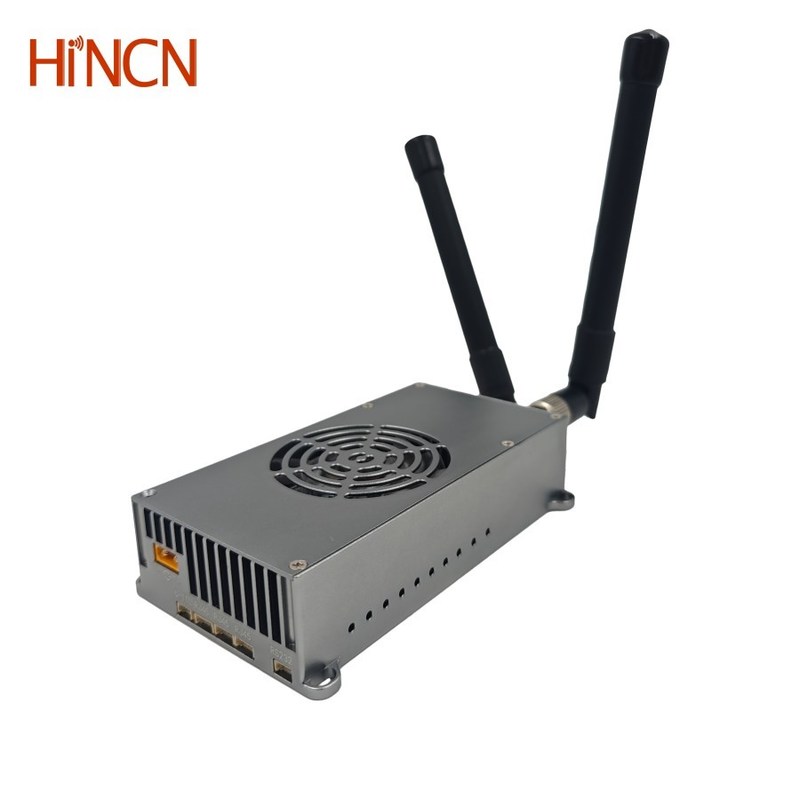

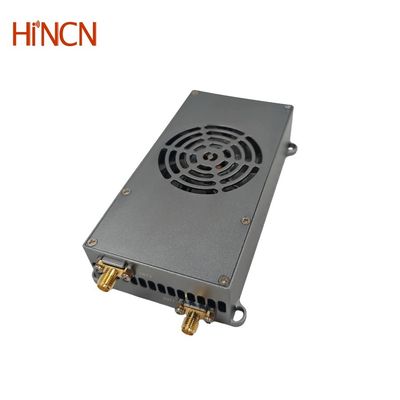

100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter 0 100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter 1
Input/Output Connections
Connection Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART (RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female
Wireless Networking Capabilities

This HCL602 5W UAV video data link supports mesh network with maximum 16 nodes and shared maximum 50Mbps Iperf Throughput.

Remark: we have higher version that supports up to 32 nodes. If you need it, please contact us.

  • Mesh network capacity: supports a maximum of 16 Nodes (2≤N≤16)
  • Transport: unicast, multicast, and broadcast are supported
  • Time synchronization: self-synchronization without external clock
  • Power control: adaptive transmission power adjustment
  • Topology: supports multi-hop routing with maximum 16 nodes
  • Routing: automatic routing adjustment with fixed route configuration option
  • Data rate level: adaptive average distribution system rate
100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter 2
Frequently Asked Questions
Q: Does this UAV video transmitter support any other cameras except IP camera?
A: IP camera video can be connected with HCL602 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL602 via Ethernet connection as below:
100km Mesh Radio Anti-jamming UAV Video Data Link Long Range Video Transmitter 3
