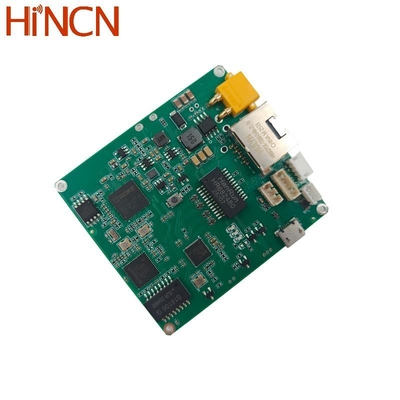

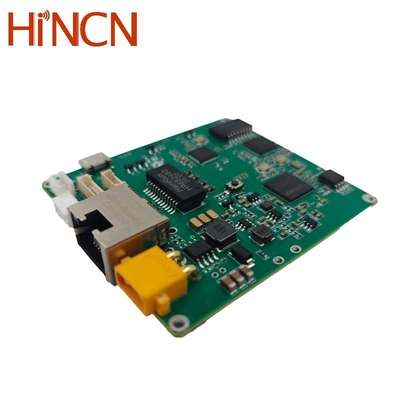

5~22km Range TDD Video Transmitter Receiver Module with 806~826MHz and 1428~1468MHz Frequency for UAV Drone Video Data Link

• TDD OFDM  transmitter receiver module for video data Link
• RF Power: 25±2dBm
• Working Frequency: 806~826HMz, 1428~1468MHz, 2402~2482MHz
• Support transparent IP Data transmission (2* Ethernet ports)
• Support serial data transmission (3* TTL/RS232 uart)
• Audio input and output with codec
• Without installing an external power amplifier, transmit distance: 500~2000 meter (ground-to-ground), 5~22km (UAV-to-ground)
• Supports Point-to-Point and Point-to-Multipoint Networks or Mesh networks

HCL5-M Video Transmitter Receiver Module module was designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 800MHz, 1.4GHz and 2.4GHz bands, with frequency hopping technology (FHSS) to ensure stable signal communication.

HCL5-M Video Transmitter Receiver Module module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. DLB module supports features of maximum 16 Access Nodes connected to a Central Node. All of the Nodes are in a same wireless LAN and share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput). Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI or AT command. When using the module for Point-to-Point transmitting, uplink and downlink share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput) too. The module supports networking mode: Point-to-Point, Point-to-Multipoint, Relay, and Mesh (specify mesh version when order).
