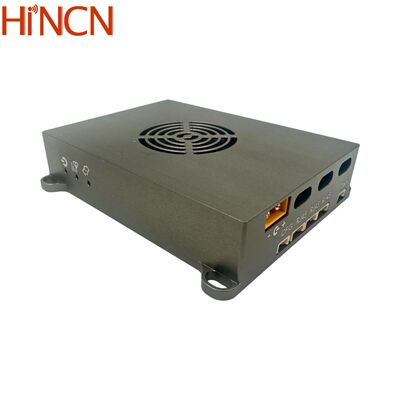

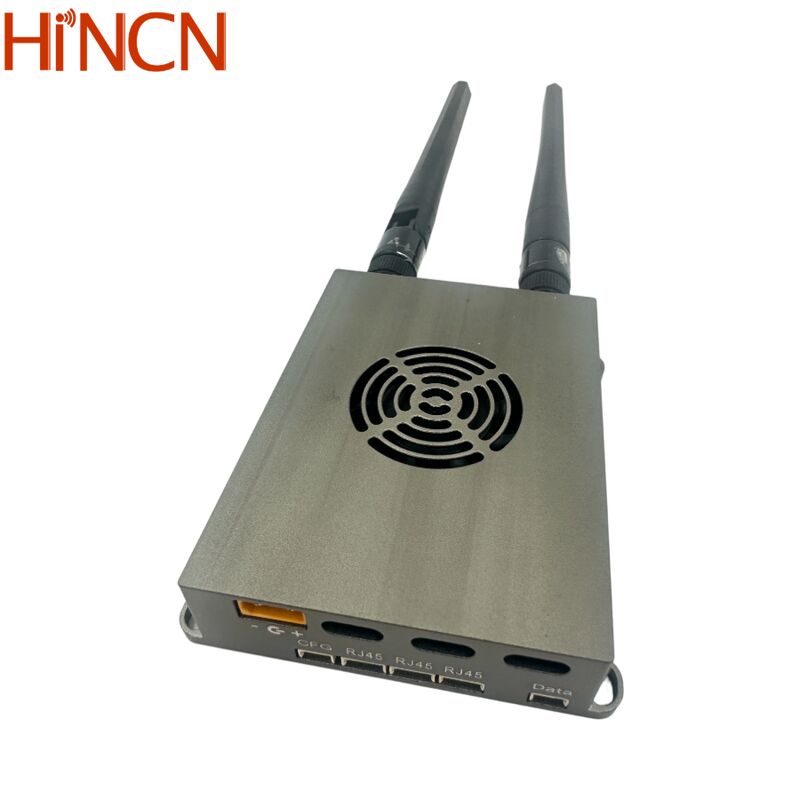

Wireless HD Video Data Link for Industrial Inspection & Remote Monitoring
Transmit HD video from industrial drones and robots for safe and precise inspection of pipelines, tanks, and plants.
Key Features
- Real-time video transmission
- Resistant to harsh environments
- Plug-and-play deployment
Technical Specifications
Radio
| Frequency |
566~678MHz and 1420~1530MHz (customizable) |
| Bandwidth |
3/5/10/20/40MHz |
| RF Power |
300mW*2 |
| Modulation |
OFDM |
| Constellation |
QPSK,16QAM,64QAM, self-adaption |
| Duplex |
TDD |
| Throughput |
Up to 100M bps |
| Encryption |
AES128 |
Power
| Air Unit |
300mW*2 |
| Ground Unit |
300mW*2 |
Size and Weight
| Air Unit |
83.7*61.4*19 mm / 98g |
| Ground Unit |
83.7*61.4*19 mm / 98g |
Connectivity
| Antenna |
SMA*2 |
| Video Interface |
Ethernet*3 |
| Other Interface |
2 channel TTL 3.3V uart as default, RS232 optional + S.bus |
Environment
| Working Temperature |
-40°C~60°C |
Applications
Frequently Asked Questions
What types of industrial inspection applications are supported?
This system is ideal for power line inspection, pipeline inspection, bridge & infrastructure monitoring, oil & gas facilities, environmental monitoring, and factory remote supervision.
What is the maximum transmission range?
It supports long-range transmission up to 150km line-of-sight (LOS). Actual range depends on environmental conditions and antenna placement.
What video resolution and frame rate are supported?
Supports HD 1080p and 4K video at up to 60fps, ensuring real-time, clear, and low-latency video for remote monitoring and inspections.
How secure and reliable is the system?
The system uses AES-128 encryption and MIMO anti-interference technology, providing stable and secure video transmission in harsh industrial environments.
Can the system work in extreme conditions?
Yes. The devices are IP-rated and operate in temperatures ranging from -20°C to +55°C, resistant to dust, rain, and other harsh environmental factors.
Is the system easy to deploy and integrate?
Yes. It is lightweight, compact, and plug-and-play, with support for SDK, API, TTL, and Ethernet interfaces, allowing seamless integration with existing control systems.
Can multiple inspection sites or vehicles be monitored simultaneously?
Yes. The system supports multi-node and multi-hop configurations, enabling real-time monitoring from multiple drones, vehicles, or stationary inspection units simultaneously.
What latency can I expect for live monitoring?
The system provides ultra-low latency (<120ms), allowing near real-time control, FPV inspections, and immediate situational awareness.
Can it integrate with other industrial systems?
Absolutely. The system is compatible with UAVs, UGVs, cameras, GCS (Ground Control Stations), NVR, and VMS, making it highly versatile for various industrial applications.
What are typical use cases?
- Power line & pipeline inspection
- Bridge, tower, and industrial infrastructure monitoring
- Oil & gas and chemical plant inspections
