HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264

HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264
HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264 HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264

Large Image :  HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HC-T4K
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: US$798.00~US$929.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability: 300 pcs/ month
Contact Now Chat Now

HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264

Description
Wireless Modulation: COFDM Transmission Power: Configurable From -93dBm To -5dBm
Frequency: 160MHz~4GHz Bandwidths: 1MHz~8MHz Adjustable
Bitrate: 0.5Mbps To 31.67Mbps Size: 80*50mm
Highlight:

4K radio transmitter module

,

COFDM radio transmitter module

,

H264 transmitter Encoder

HDMI Input 4K Video COFDM Modulator With H.265/H264 Encode And Low Latency
Key Features
  • COFDM modulation technology
  • HDMI input supporting 4K (3840×2160@30) video with H.265/H.264 encoding and low latency
  • IP camera video input via network port
  • Analog audio or HDMI audio input options
  • Unidirectional data transmission serial port
  • Web UI or serial port configuration for management
Product Overview

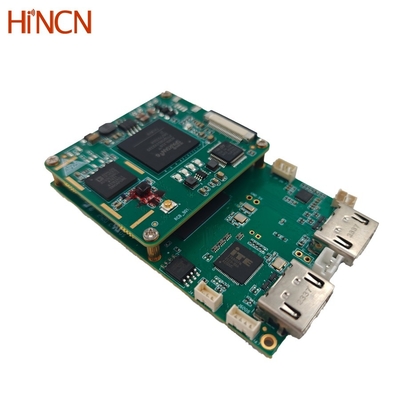

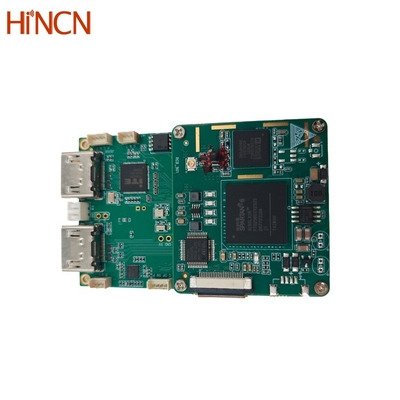

The 4K COFDM Transmitter module combines a COFDM modulator and 4K video encoder connected by 26-pin FPC ribbon cable. It supports 4K (3840×2160@30) video input with H.265/H.264 low-latency encoding, IP Camera video input, and COFDM modulation transmission.

HDMI 4K Video COFDM Radio Transmitter Module Encoder H.265 H264 0
Interface Specifications
Interface Description
HDMI in Standard Type A HDMI connector, supports up to 4K (3840×2160@30) video input with H265/H264 low-latency encoding
Ethernet 4 pin PH1.25mm connector, supports IP camera connection and Web UI configuration (default IP: 192.168.0.215)
Data Uart 3PIN PH1.25mm connector, bidirectional transparent data uart, TTL 3.3V level with configurable baud rate
Control Uart 4PIN PH1.25mm connector, TTL 3.3V level for module management
Analog Audio in 3PIN PH1.25mm connector for analog audio input (AAC, 16-bit, mono, 48 Kbps)
Power in 2PIN PH2.0mm connector with reverse connection protection (7-30V input, max 5W consumption)
HDMI out Standard Type A HDMI connector
USB For software upgrade and maintenance
Tx IPEX connector for COFDM modulation RF output
Technical Specifications
Parameter Specification
Modulation COFDM QPSK, 16QAM, 64QAM
Subcarriers 2K
Wireless bandwidth 1MHz~8MHz adjustable (1KHz step)
Frequency 160MHz~4GHz
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Output power Configurable from -93dBm to -5dBm
Bitrate 0.5Mbps to 31.67Mbps
Encryption AES256
Latency H264 1080P: ~130ms, H265 4K: ~350ms
Size 80×50mm (excluding connectors)
Weight 41g
Thickness <15mm
Customization Options

We offer various COFDM transmitter modules with different functions supporting multiple video input formats. Custom OEM & ODM solutions are available - contact us to discuss your project requirements.

Tag:

radio transmitter module,

hdmi to cofdm modulator,

cofdm module
