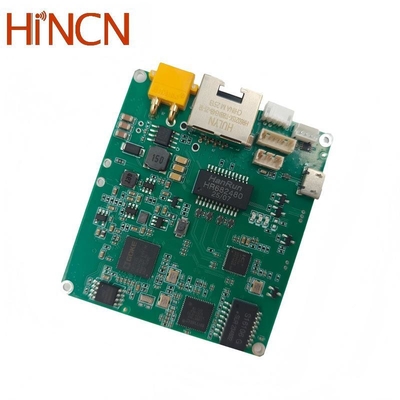

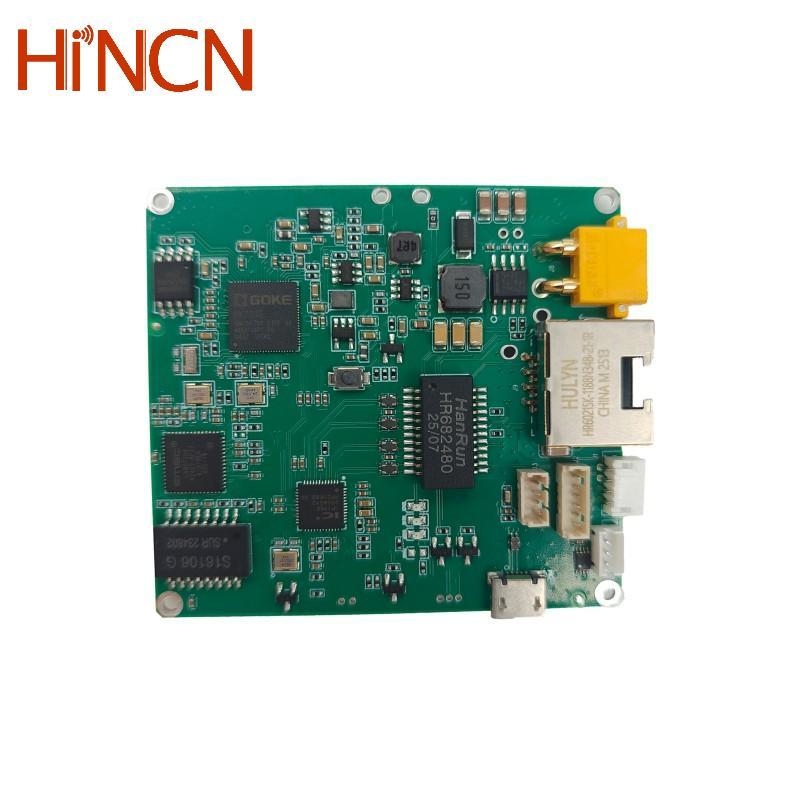

COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range

COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range
COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range

Large Image :  COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range

Product Details:
Place of Origin: China
Brand Name: Hincn
Model Number: HCL5-M30
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: US$1,399.00~US$1,599.00
Packaging Details: carton package
Delivery Time: 7~14 working days
Payment Terms: ,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability: 699 pcs/month
Contact Now Chat Now

COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range

Description
Modulation: TDD OFDM Encryption: AES128
Management: Web UI And Control Uart RF Transmission Power: 25±2 DBm+ 5W External Power Amplifier
FHSS: Support OEM & ODM: Support
Highlight:

AES128 TDD Radio

,

TDD Radio Module

,

ODM radio module

COFDM Video Transmitter And Receiver Module With AES128 Encryption Data Link
Key Features
  • TDD OFDM radio module for video data Link
  • RF Power: 25±2dBm (requires 5W power amplifier for 30~55km range)
  • Working Frequency: 806~826MHz, 1428~1468MHz, 2402~2482MHz
  • Transparent IP Data transmission (2× Ethernet ports)
  • Serial data transmission (3× TTL/RS232 uart)
  • Audio input and output with codec
  • Transmit distance: 30~55km (UAV-to-ground)
  • Supports Point-to-Point, Point-to-Multipoint, and Mesh networks
Overview

The HCL5-M  video transmitter and receiver moduleis specifically designed for wireless video data transmission with two-way wireless data link capability. Operating in 800MHz, 1.4GHz, and 2.4GHz frequency bands, this OFDM module employs frequency hopping technology (FHSS) to ensure stable signal transmission.

Specifications
Modulation TDD-OFDM
Model Number HCL5-M30
Name COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range
Frequency 806~826MHz, 1428~1468MHz, 2402~2482MHz
FHSS Supported
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 25±2 dBm + 5W external power amplifier
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -106dBm (2.4GHz 1Mbps), -108dBm (1.4GHz 1Mbps), -108dBm (800MHz 1Mbps)
Ethernet Ports 2 × Ethernet ports for IP data transmission
Serial Ports 3 × RS232/3 × TTL for serial data transmission
Transmission Range 30km~55km
Management Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay, Mesh
Power Consumption <22W (RF Power 5W)
Module Size 58×64×13mm
Module Weight 32g
Working Temperature -20℃ ~ +65℃
Storage Temperature -40℃ ~ +80℃
Input/Output Signal
Power In XT30PW-M connector, DC in: 7~30V
Ethernet 1 4Pin ZH1.5mm connector
Ethernet 2 RJ45 connector
Data UART1 3PIN ZH1.5mm connector, TTL 3.3V
Data UART2 and UART3 6PIN PH1.25mm connector, UART3 works as control uart and data uart, TTL 3.3V
Audio Input and Output 4PIN PH1.25mm connector
USB Micro USB connector, for software upgrading
Switch TX/RX control signal for outside power amplifier
Main-Antenna TX/RX antenna port, IPEX
Second-Antenna RX antenna port, IPEX
12V Out On board 12V out (<150mA), for cool fan power supply
Power LED Red, light on when normally powered
Node LED Blue, light on when the module works as central node
Link LED Light off - node not linked; Red - linked with weak signal; Orange - linked with medium signal; Green - linked with strong signal
COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range 0 COFDM Video Transmitter and Receiver Module with 30~55km Transmission Range 1
Wireless Networking with HCL5-M Module

The TDD video transmitter receiver module supports two working modes: Access Node or Central Node. It can be managed through Web UI or AT command via UART3. This module can connect up to 16 Access Nodes to one Central Node, with all nodes sharing a maximum 30Mbps@20MHz throughput bandwidth. Uplink and downlink stream ratio can be controlled through web UI or AT command.
